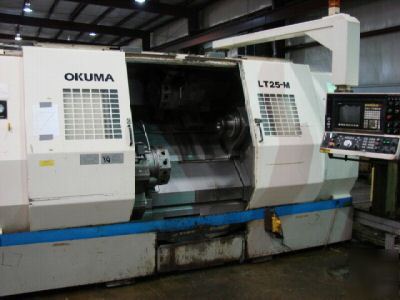

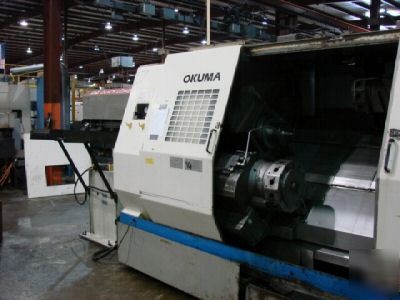

Okuma LT25M 7 axis twin spindle cnc lathe with milling
OFFERED FOR SALE AS TAKEN FROM SERVICE. THERE ARE FOUR
1-OKUMA LT25M 7 AXIS TWO SPINDLE/TWO TURRET CNC LATHE
MACHINE SERIAL NUMBER 0603-0005
SPECIFICATIONS SUBJECT TO VERIFICATION:
MAX. TURNING DIAMETER X LENGTH 11.81" x 11.81"
X AXIS TRAVEL CROSS SLIDE 10.43" UPPER AND LOWER TURRET
Z AXIS CARRIAGE TRAVEL (A) 22.4"
C AXIS CONTROLLABLE ANGLE .001 DEGREES
NUMBER TOOLS ON EACH TURRET 12
M TOOL SPINDLE SPEED 35 TO 3000 RPM
CROSS SLIDE FEED MOTOR X AXIS 5.3 HP
MACHINE DIMENSIONS 84" TALL X 190" LONG X 83" DEEP
APPROX WEIGHT OF MACHINE 25,000 LBS
