Miyachi unitek generation 2 enclosure system welder

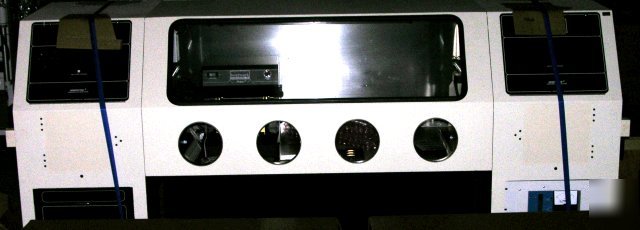

Miyachi Unitek Generation 2 Enclosure System Welder
This is a used unit, with various small scratches, and excellent operational condition.
This unit has been babied and is in awesome condition!
Click here to see that datasheet in PDF format: http:// :4000/res_products/pdf/Gen_2_Windows.pdf
Please see below for system contents.
Unit comes as shown, no other accessories are included.
Manufacturer's Specifications/Features:
(Please note that not all features may be included in this item)
* Benchmark International Phase 3 Welder
#1 Rated Atmospheric Enclosure System In The Industry
Intelligent design and proprietary software deliver an absolute environmental and process control that spans a wide range of hermetic seam sealing operations. Comprehensive capabilities address every concern, every need cost-effectively and efficiently.
* Contamination-free environment
* Multiple vacuum bakeout oven configurations
* Fully-integrated automatic electronic gas pressure control system
* Moisture and Oxygen monitoring
* ISO 9000/Military specification traceability
* Input: 220VAC, 30A, 3P, 50/60Hz
The 2-stage 2010SD series rotary vane pumps address the requirements of all major vacuum applications in diverse industries. No oil mist pollution at the exhaust: the natural lubrication design offers the lowest oil mist level, even with high throughputs or frequent cycling between atmosphere and ultimate pressure. Compact design: reduced dimensions, all controls and service access located on the front. Optimized tightness: integrated anti-suckback; all static sealings secured by O-rings; external shaft seal can be renewed easily, without dismantling the pump. This Alcatel pump has a pumping speed of 6.8cfm or 10 cubic meters per hour. Ultimate partial pressure: 10-4 mbar.
The compact, horizontal Coolmate 3 allows stacking or convenient mounting onto a trailer or other equipment. It is designed for water-cooled torches rated up to 500 amps, and utilizes an efficient fin-and-tube heat exchanger. Unlike most competitive systems, this unit is equipped with a power switch so you can turn the unit on and off at the front panel. The polyethylene-molded coolant tank, fan shroud, filler spout and ligting handles are rustproof. A "paddle wheel" indicator makes it easy to confirm that coolant is flowing. Filter and coolant filling spout are conveniently located for easy access at the front panel.
The GOW-MAC 20 Series Gas Analyzer is designed as either a single or a dual pass unit. It is supplied as either bench or 19” rack mounted. For special applications, an optional purgeable housing is available. A single pass analyzer has a hermetically sealed reference thermal conductivity detector (TCD). It has a pump (optional), flowmeter with needle valve, leak proof connectors, and a gas selection manifold for zero, calibration, and sample gases. A Dual pass unit has a flowing reference TCD, flowmeters and pump (optional). Materials of constructions are inert to most sample streams normally encountered.
* Optimized, Self-Contained Gas Flow System
* Built-in Gas Selection Manifold
* Custom Designed to Your Application
* Choice of standard, corrosion resistant or all stainless steel system
* Class 1, Div 1, Group B, C, D Class 1, Div 2, Group B, C, D available systems
This item requires a huge crate. Please contact us for the crating fee & S&H charges.
ANOTHER GREAT DEAL FROM TECHRECOVERY!
* Test equipment with pre-calibration has a 100 day guarantee from defect and 10 day right of return.
* Please allow an extra 7 - 10 business days for delivery for items that require crating and freight delivery.
