16" x 32" weldon cnc cylindrical grinder

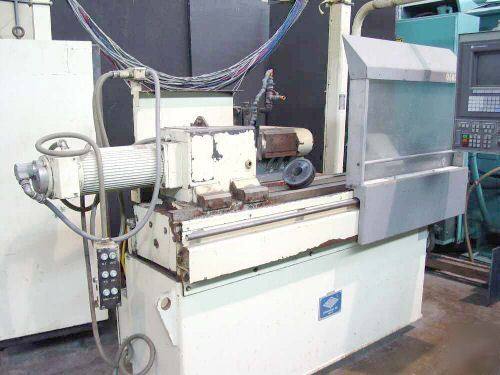

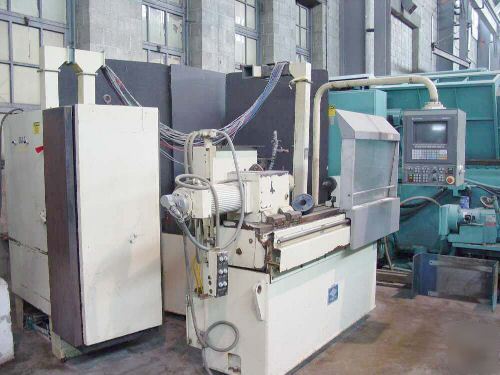

16" X 32" WELDON CNC PLAIN CYLINDRICAL GRINDER
Model APG1632, New 1982/Retrofit 1992, S/N 642

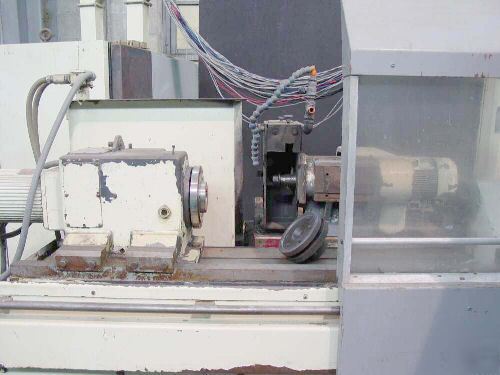

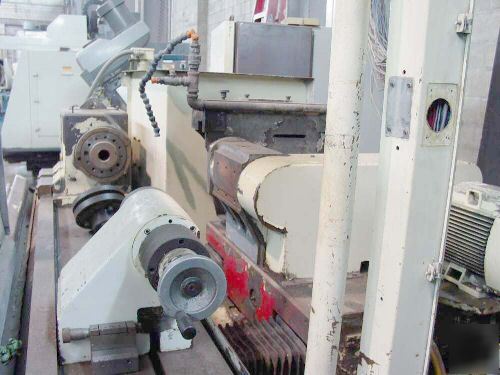

MACHINE DESCRIPTION: This Machine is Equipped with a Full C-Axis Programmable Workhead. This Offers the Capability of Grinding Nonconcentric Parts such as Cams Shapes or Camshafts. This also Allows You to Grind Flats on Shafts such as Square Punches, Octagon Shafts, Polygon Shaped Dies and Cutter Relief Angles.
Swing Over Table, Maximum............................. 16"
Grinding Diameter, Maximum (with New 14" Wheel)....... 16"
Grinding Length, Maximum (Work Length)................ 26"
Wheelslide Angle...................................... 90 DEG
Grinding Wheel, Maximum Diameter (with New Wheel)..... 14"
Grinding Wheel, Maximum Width......................... 2"
Grinding Wheel, Hole Diameter......................... 5"
Table Rapid Traverse Rate............................. 100 IPM
Table Feed Rates...................................... .01 - 100 IPM
Wheelhead Infeed Rapid Traverse Rate.................. 100 IPM
Wheelhead Infeed Resolution........................... .00001
Wheelhead Horsepower.................................. 10 HP
Wheelhead (Grinding Wheel) Speed...................... 1750 RPM
Workhead Speed (Infinitely Variable).................. 0-600 RPM

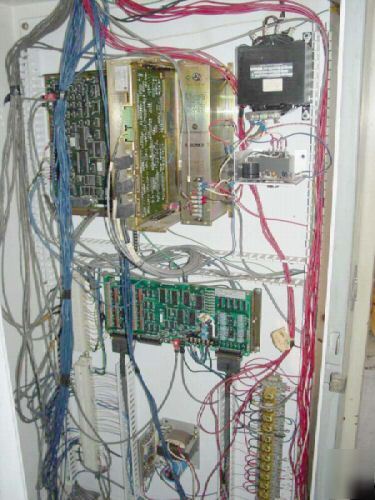

Electrical System..................................... 440/3/60
Approximate Machine Dimensions........................ 76" x 121" x 87"
Approximate Machine Weight............................ 13,500 LBS
CONDITION: Appears to be in Very Good Condition !
We will load the machine onto your truck at no charge. Machine is being sold with a 30 Day Money Back Return Guarantee.
Ph: (***)-771-2111 Fax: (***)-771-2552
