New industrial heavy duty walking foot sewing machine
SUGGESTED RETAIL PRICE $799.00 USD

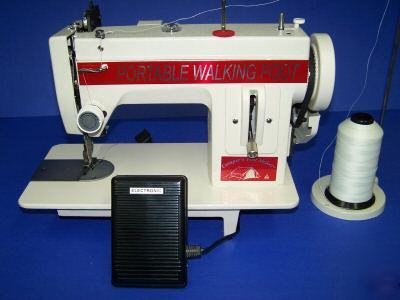

This is a NEW in a sealed box Portable Walking Foot Sewing Machine. Straight stitch with reverse. It is made to sew medium to heavy material. This portable machine is great for canvas, leather, jeans, sails, nylon and any other heavy material. The machine comes with an electronic foot control, built in motor, manual and extra accessories.
YOUR NEW MACHINE WILL OIL ITSELF FOR YOU FOR SEVERAL MONTHS. THIS NEW FEATURE WILL ELEMINATE THE FRUSTRATIONS OF HAVING TO REMEMBER TO DISASSEMBLE AND OIL YOUR MACHINE ON A TIMELY BASIS. THIS IS CRITICAL BECAUSE, IF NOT LUBRICATED PROPERLY, YOUR MACHINE COULD SEIZE UP AND CAUSE VERY EXPENSIVE REPAIRS.
~INFORMATION ABOUT WALKING FOOT SEWING MACHINE GATE AREA~
THE CAMPER'S TENT MAKER BRAND SEWING MACHINE HAS A 7" GATE AREA
#1-THE 9" GATE AREA MACHINES ARE MUCH HEAVIER THAN OUR 7" MODELS.
ALL ARE MADE OF CAST IRON AND STEEL. THEREFORE AN EXTRA 2" WILL ADD CONSIDERABLE WEIGHT. A PORTABLE WALKING FOOT SEWING MACHINE IS NOT VERY PORTABLE IF IT IS TOO HEAVY.
SOMETIMES BIGGER IS NOT BETTER.
#2- OUR 7" MODELS FIT ANY STANDARD FULL SIZE CARRY CASE. THE 9" WILL NOT.
OUR MODEL HAS AN AVAILABLE TOP AND A BOTTOM TO THE CASE WITH SNAP CLASP CLOSURES THAT ALLOWS IT TO BE PORTABLE WITH A BUILT-IN CARRY HANDLE.
OUR 7" MODEL WILL ALSO FIT MOST ANY STANDARD SEWING MACHINE CABINET. THE 9" WILL NOT. THERE ARE NO CASES OR CABINETS MADE OR AVAILABLE FOR THE 9" GATE MODELS.
SOMETIMES BIGGER IS NOT BETTER.
#3- THE GATE AREA DOES NOT AFFECT YOUR SEWING ROOM OR COMFORT.
SEWING IS PUTTING TOGETHER SEAMS. ALL SEAMS ARE WITHIN A MAXIMUM OF 2" (MOST ARE LESS) FROM THE EDGE OF THE FABRIC OR MATERIALS BEING SEWN FROM THE RIGHT SIDE OF THE MATERIAL TO THE NEEDLE. THE BULK OF YOUR PROJECT IS ALWAYS TO THE LEFT OF THE NEEDLE. THEREFORE A 7" GATE, MUCH LESS A 9" GATE, IS NEITHER NEEDED NOR REQUIRED.
SOMETIMES BIGGER IS NOT BETTER
Therefore, the 9" models have no advantages what so ever. To the contrary, they have many disadvantages.
Heavier, No carry case available, No cabinet avaiable, No carry handle, use additional storage space. Subject to damages due to
not being able to be covered when not in use.
#4- THE CAMPER'S TENT MAKER BRAND NOW HAS A BUILT-IN SELF OILING
FEATURE THAT NO OTHER 7" OR 9" MODELS HAVE.
THE CAMPER'S TENT MAKER IS THE NEWEST
TECHNOLOGY IN THE MARKET TODAY.
THE OLD TECHNOLOGY OF A VERY LARGE OIL PAN WITH A FULL QUART OF MESSY OIL THAT REQUIRES AN OIL PUMP WITH A LARGE COMMERCIAL STAND AND MOTOR ARE NO LONGER NEEDED OR REQUIRED AS THE UNINFORMED DON'T UNDERSTAND.THE NEW TECHNOLOGY OF OUR PORTABLE WALKING FOOT SEWING MACHINE WITH THE SELF OILING FEATURE IS THE LATEST AND NEWEST TECHNOLOGY THAT ONLY REQUIRES ABOUT AN OUNCE OF OIL. SIMILAR TO THE FULL SIZE SINGER INDUSTRIAL SEWING MACHINE MODEL # 20U
#5- THE CAMPER'S TENT MAKER CARRYS A FULL TWO (2) YEAR DEFECTIVE PARTS WARRANTY. MOST OTHERS DON'T.
THIS PICTURE IS OF THE NEW SELF OILING WICKING SYSTEM.
FLAT SEWING FEETLARGE THREAD CONE STANDELECTRONIC FOOT CONTROLINSTRUCTION MANUALOILFELTSBOBBINSNEEDLESSCREW DRIVERSSTORAGE BOX KIT24 MONTH WARRANTY
INCLUDES A TWO YEAR (24 MONTH) DEFECTIVE PARTS WARRANTY
VERSUS 90 DAYS TO ONE YEAR WARRANTY ON SIMILAR MACHINES
This well built, all metal, straight stitch sewing machine features a powered walking foot for the ultimate in feeding ability. On most sewing machines the presser foot simply holds the fabric down and all movement is accomplished with a single, bottom feed dog. The Campers Tent Maker uses a mechanical “Walking†presser foot that moves forward and back in time with the feed dog to ensure that the layers of fabric are consistently moving together through the machine.
Feed heavy, slippery, sticky fabrics with ease. Walk over thick hems, make the transition from thick to thin without skipping stitches. Produce consistent stitch lengths. A variable stitch length mechanism allows for very long straight stitches—up to 6mm. This reduces needle pucker for professional quality upholstery and canvas work.
Excellent power is provided by a 110 volt AC motor that develops 6600 rpm at 1.5 amps. A cogged belt and pulley jack drive system slows the machine, increases its power and eliminates slippage
The Camper's Tent Maker employs a self oiling system that will keep the machines critical metal parts lubricated for increased performance and worry free sewing. Portable walking foot sewing machines are constructed of all metal components which require proper lubrication to function PROPERLY, machines without this key feature tend to heat up, reducing the life span of the machine.
Once the Reservoir is filled you can sew worry free through the toughest of materials
Features an integrated walking foot to sew all of your heavy and thick fabric applications!
Provides a strong constant stitch every time and feeds through the toughest materials with ease!
Constructed of all metal components for durability
This is one heavy duty sewing machine, it will even sew a perfect stitch right through a yard stick!
- "Walking Foot" - moves back and forth in time with the lower feed dog system to ensure consistent and even feeding of the fabric.
- A Very Long Stitch Length - to sew heavy duty canvas work, leathers, etc. and accommodates up to a size 23 needle and heavy commercial thread.
- Power! Our heavy duty motor with cogged belts and pulley drive system eliminates any slippages.
- Versatility - very excellent performance in a wide variety of fabrics, including heavy, hard to sew canvas, Dacron, slippery nylons, sticky vinyl's, thick fabric assemblies such as leathers
- Convenience - our machine is portable and has a lever activated reverse.
- Takes only a minimum of storage space when not in use.
Thread take- up lever: link type
Maximum straight stitch length: 6mm
Maximum sewing speed per min: 800 stitches
Shuttle: oscillating (cam and rocker arm driven)
Bobbins: industry standard round all metal class 15
Motor pulley: double pulley posi-traction toothed belts
Needles: system 135x17 round top (sizes 11 through 23)
Power: 1/10th hp, 110 volt, AC motor, 1.5 amp, 150 watts, 6,600 rpm
Lubrication: semi-self automatic (PATENT PENDING)
The Camper's Tent Maker has been purchased and scrutinized by the following government agencies
I don't know how I went all these
Years without this jewel !!!!!!! I love it.
The Machine is great and is everything I hoped it would be...
Thank you so much for helping me with my first purchase on the inter net You helped me a lot with understanding how it all works. I will be sure to let others know about your machine and where to get them.
Should you need a little testimonial blurb for your web site, etc. I'd be happy to oblige!
This machine is a real work horse! it sews through my canvas like it was butter... Thanks for all your help
I dont know how i lived without it... I love its portability... I take it to the job site and it saves me lots of time
