New bt 45 multi-spindle drilling head D2C (BT45)
BIG-SHEPPARD MODEL #BT45-D2C-118.513
ADJUSTABLE MULTI-SPINDLE DRILLING HEAD
* Being sold at over 40% off original price
* In perfectly new condition
High alloy material (Chrome, Molybdenum, Manganese) hardened to 60RC assures rigidity and long life of tool holder. The taper shank is ground to .00003" surface finish and has 90% surface taper contact with spindle, which provides high accuracy, rigidity and longer life for the machine spindle and tools. All surfaces except ground surfaces are coated with anti-rust treatment.
Adjustable Multi-Spindle Drilling Heads make it possible to drill two holes in the same time it takes to drill one hole. This saves machining time and increases production. The spindle pitches can be adjusted to suit different hole patterns. The locating pin angular position and length can be adjusted, allowing for a wide range of machine model applications.
Multi-Spindle Heads require the use of a Stop Block. The Stop Block is mounted to the spindle flange of the machine. Please contact us for specific details.
BIG Adjustable Multi-Spindle Heads utilize ER style Collect. Please contact us for more information.

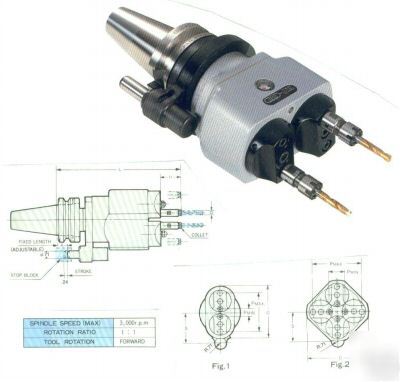

PLEASE NOTE: DRILLS AND ER COLLETS ARE NOT INCLUDED. THIS IS A STOCK PHOTO.
ORIGINAL PRICE: $3,595.00 - SALES PRICE $2,157.00!!!
* Drill (D): Min. diameter: .04" ; Max diameter: .511"
* Pitch (P): Min. diameter: .1.1811" ; Max diameter: .5.1339"
* Type: Adjustable Multi-Spindle Drilling Head
