Tektronix 608 x-y-z monitor directed beam viewing scope


TEKTRONIX 608 X-Y-Z MONITOR DIRECTED BEAM VIEWING SCOPE, BNC INPUTS
The 608 Display Monitor is one of Tektronix finest directed beam viewing monitors. With a small dot size of 0.25 mm and a large screen size of 9.8 x 12.2 cm, it retains a brightness level of up to 75 fL. It has a special mesh halo suppression CRT design that improves contrast and sharp corner to corner imaging. It includes an internal graticule, full differential inputs, linearized Z-axis (Gamma correction) and TTL blanking.

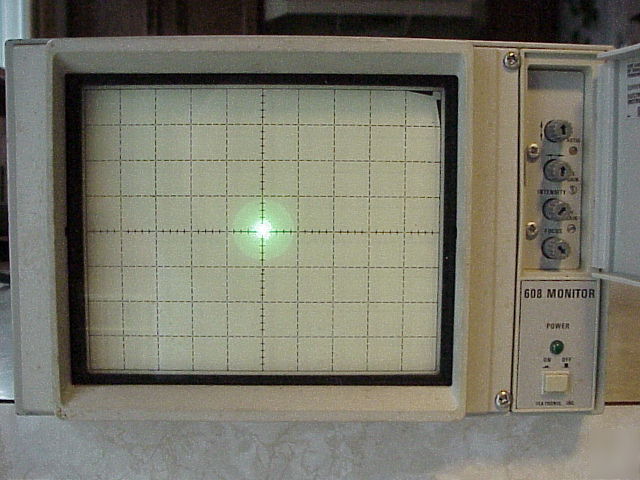

I put a test signal on each individual input and took a picture.
Front controls: TRACE up/down & GAIN, TRACE left/right & GAIN, FOCUS, INTENSITY, ASTIG & POWER on/off.
Rear panel has: X input bnc, Y input bnc, Z input bnc. Wired for 110 VAC. Plugs into ordinary outlets.
In very good condition, clean, tested and works very well.
