Siemens eagle EPAC300 nema controller EPAC3608M10
SIEMENS EAGLE EPAC300 SERIES NEMA CCONTROLLER (082205502280)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

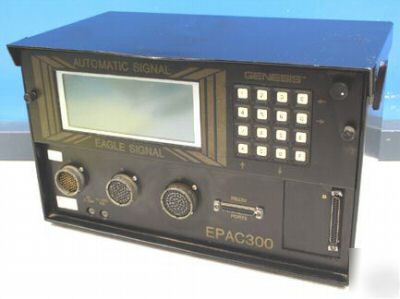

Siemens Eagle EPAC300 Series NEMA Controller
* Retail Price WAS: $1,950.00 has since been replaced by the M40 Series and M50 Series
* Availability: Obsolete has since been replaced by the M40 Series and that was replaced by the M50 Series
* 8: Number of Phases 8=8/16 Phase
* The EPAC300 Series Controller unit is a fully actuated controller unit with a full complement of operational, programming, and diagnostics capabilities.
* The EPAC300 Series Controller Unit exceeds both NEMA TS 1-1989 and TS 2-2003 Actuated Controller Unit Standards.
* The EPAC300 Series Controller Unit has an LCD alphanumeric backlit display (8- line - 40 char/line).
* Programming is easy and error free using English Language Menus. Within a menu, each parameter can be viewed and a cursor moved to that parameter for changes.
* Related parameters are visible simultaneously, making verification an easy matter. The screen provides both programming area identification and editing prompts.
* Exceeds NEMA TS-1 and TS-2 standards for traffic controllers
* Front Panel multi-line alphanumeric backlit display for all operational parameters and states
* Fully prompted, menu driven programmability
* EEPROM technology is used to retain all timing and control parameters even during power outages. No batteries are required for retention of traffic parameters
* Adaptive Protected/Permissive Routines
* Coordination Virtual Split Routine
* Date and Time of Occurrence
Diagnostics & Status Displays:
* Monitor Compatibility Diagnostics
* Monitor Field Status Diagnostics
* Port 2 Comm Status Display
* Port 3 Comm Status Display
* Hardware I/O Status Display
* Permissive Mode – provides non-actuated coordination phase, vehicle and pedestrian, with permissive windows opened phase by phase to the non-coordination phases.
* Yield Mode – provides for actuated coordination phase vehicle and pedestrian, with a single permissive window for all non-coordination phases.
* Permissive Yield Mode – provides for actuated coordination phase vehicle and pedestrian, with permissive windows opened phase by phase to the non-coordination phases. Additionally, the coordination phase vehicle may extend its green time at the beginning of the first permissive window.
* Permissive Omit Mode – provides operation similar to Permissive Yield except that the coordination phase, once terminated, is prevented from occurring prior to the end of the last permissive.
* Sequential Omit Mode – provides operation similar to Permissive Yield except the permissive is a phase by phase sliding window (only one phase in a ring will be allowed service at any time).
* Full Actuated Mode – provides operation similar to Permissive Yield except that any phase may be serviced and re-serviced in the standard sequence following the first permissive and through the last permissive.
Diagnostics & Status Displays:
A resident diagnostic program is standard in the EPAC300 Series Controller Unit. In addition to the extensive displays to and in intersection setup, monitoring, and operation, the resident diagnostic program enhances the maintenance and troubleshooting of the controller assembly.
* Monitor Compatibility Diagnostics
* Monitor Field Status Diagnostics
* Port 2 Comm Status Display
* Port 3 Comm Status Display
* Hardware I/O Status Display
The EPAC300 Series Controller Unit provides an extensive report capability. Each report entry includes the Date and Time of occurrence.
* Local Alarm Log, stores up to 120 events
* Comm Fault Log, stores up to 60 events
* Detector Fault log, stores up to 60 events
* System Detector Log, stores up to 96 events
* MOE Log, stores up to 24 events
* Speed Log, stores up to 24 events
* Volume Count Log, stores up to 72 events
* Cycle MOE Log, stores up to 60 events
* MMU Fault Log, stores up to 10 events
Internal Preemption is a highly flexible routine operating within the EPAC300 Series Controller Unit Included is:
* 6 Preempt Routines providing complete signal control
* 6 Priority Routines providing complete phase control and in sync return to coordination.
Preempt activity can be monitored on a Preempt Status display which denotes:
* Preempt In Control, Interval Timing & Interval Countdown
* Individual Preempt Status & Timing
* Individual Priority Status & Timing
* The EPAC300 Series Controller unit is designed for efficient operation and ease of maintenance. The chassis is of metal and is designed for easy access to the boards for testing without disassembly.
* To insure the accuracy of traffic control parameters, even during power outages, EEPROM technology is used to retain all timing and control parameters. No batteries are required for retention of traffic parameters. Event logging and Time Base clock utilize RAM memory for those functions with battery support.
* The EPAC300 Series Controller Unit provides for a user specified security code entry before data may be altered. This security code entry is not required to view any parameter. The EPAC300 Series Controller Unit also can disable security code requirements for perpetual access.
* Voltage: 89 to 135 Volts AC
* Dimensions: 9†H x 15†W x 8†D (229mm H x 381mm W x 203mm D)
* Temperature Range: -30° Fahrenheit to +165° Fahrenheit (-34° Celsius to +74° Celsius)
