Samsung 2440 arm development board with os in pocketpc

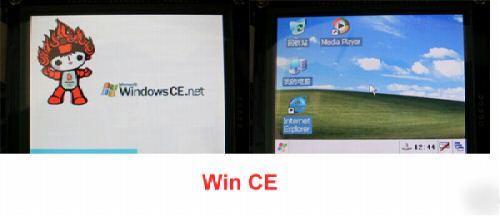

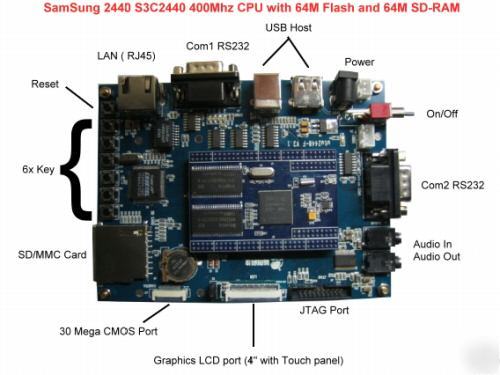

SamSung ARM 2440 CPU development Board with Linux / WinCE OS
Designed for ARM with Pocket PC , Plam OS / Linux development , can connect the device with SPI port
(Normal using for security system with Linux , Hardware control and OS development)
Device RS232 and SPI(LPT) is for connect with other chips, Such as PIC / MCU / ARM / AVR interface

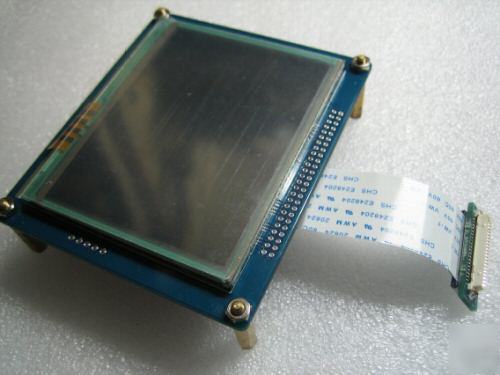

* 3.5" Graphics Color LCD (GUI) with Touch panel ($99/units)
4. Application Tools such as :
5. Full development board Circuit
6. Bootloader Sources Code for WinCE
7. With C program to control the LED flash (For Linux)
Similar Final Product such as :
http://hkpowerful.en.alibaba.com/product/200098065/202594764/GPS_Navigator_System/3_5_Inch_Tft_Color_Touch_Screen_Gps_With_Samsung_S3c2440a_40_Processor_T810.html
New Sources Code in C++ Language: (New file)
New SJF2440 Programmer Circuit with Tools for Load the code to C2440 (New file)
Welcome to email me for Linux or WinCE.Net Install and Sources Manual.

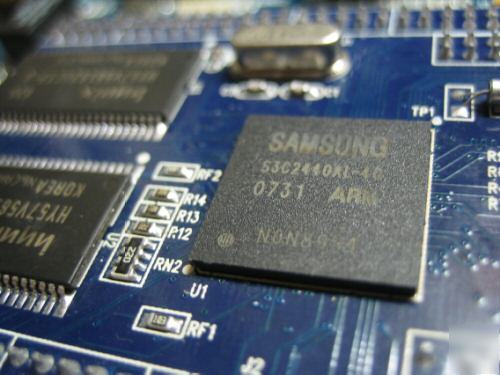

（1）S3C2440A:32bit ARM920T 400MHz
（2）Core 400MHz CPU , FS 100~133MHz
（3）LCD CPU support STN/CSTN/TFT LCD controller ，Support 1024*768 LCD display
（6）Com1 for RS232 5pin，Com2 for RS232 3pin
（7）1x USB1.1 Connect to Main Board， can connect USB hub.
（12）LCD Port , Support 3.5" /7" /4.3 " /2.8 " /10 " TFT Color Graphics LCD
（19）4x LED for Loading / Reading / Write / Error
（21）6x Key which are "Up" , " Down", " Left" , "Right" ,"Enter" and " Cancel"
* Support IP setting，windows or linux
* run install-bootloader for update bootLoader
* run install-kernel for update core system,
* run install-file system for update yaffs image
* utu-Linux for s3c2440 Core (Version 2.6.13 )
* Support ROM/CRAM/EXT2/FAT32/NFS file system
1. System Interrupt & Timer Driver
3. Block memory device driver
4. Flash memory device driver
5. 10Base-T external Ethernet device driver
6. RTC (Real Time Clock) Driver
12. LCD( Support 800*600,640*480,240*320,320*240,480*290 TFT)
* File transfer (FTP client / server)
* Local console through RS232 and remote telnet configuration and management(Sample Only)
* Ifconfig, route, inetd service
* cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes,insmod, lsmod, rmmod

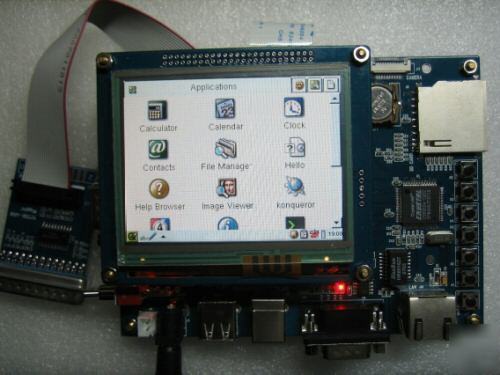

* Qtopia PDA Edition Version
