> Honeywell fan control board ST9120G 4004 HQ1009838HW
Honeywell fan control board ST9120G 4004 HQ1009838HW
Honeywell Fan Control Board ST9120G 4004 HQ1009838HW
Honeywell Electronic Fan Timer Circuit Board (6) Pin Plug:
Integrate control of combustion blower and circulating fan operations in a gas warm air appliance.
Central appliance wiring point simplifies appliance assembly and service.
Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.
Used in Furnace Models: NTC6100GFA1, NTG9075FGA1, NTC5075BHB2, ST9120C2002.NTC5075BFC1, HQ1009836HW
Thermostat Wire Connections: C,G,Y,W,R Terminals
Heat Fan On Delay adj.; set at 30 sec.
Heat Fan Off Delay adj. 60, 100, 140, 180 (set at 140 sec).
Electrical Ratings (Vac) 18 to 30 Vac.
Cool Fan On Delay fixed 30 sec.
Cool Fan Off Delay fixed 30 sec.
Approvals, Underwriters Laboratories, Inc. UL Component Listed File No.MP466.
Approvals, Canadian Standards Association Certified: File No. LR95329.
Temperature Ratings (F) -40 F to +175 F.
Temperature Ratings (C) -40 C to +79 C.
Description Electronic Fan Timer.
This new upgrade Circuit Board Module Honeywell Obsolete Part Numbers:

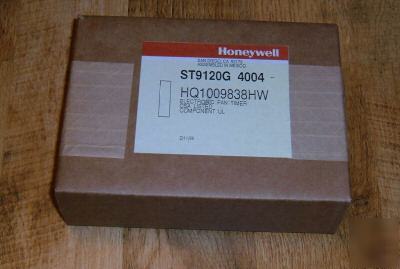

This item is Brand New in box. Actual Item is shown in photo.
