Hardinge bench center two hardinge tail stocks l-4, t-4

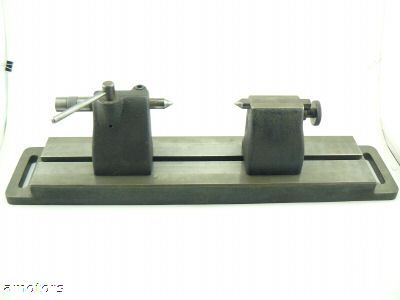

The SB-4 Sub-Base with the tailstocks can be used as a bench center.

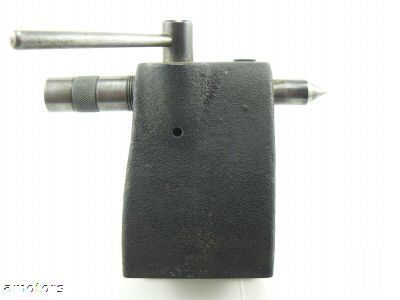

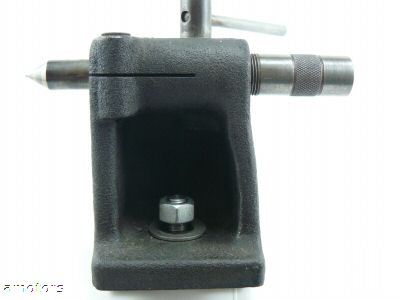

The L-4 Tailstock has a hardened and ground spindle which is lever-operated with a rack and pinion.
The spindle is spring loaded to hold the center against the workpiece. A position lock is also provided.

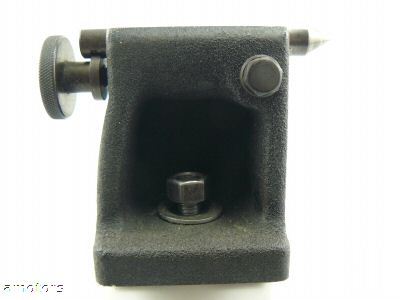

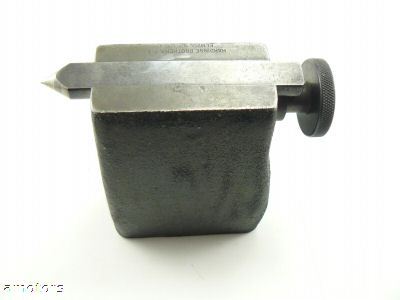

The hardened and ground spindle on the T-4 Tailstock is screw fed and can be locked in any position

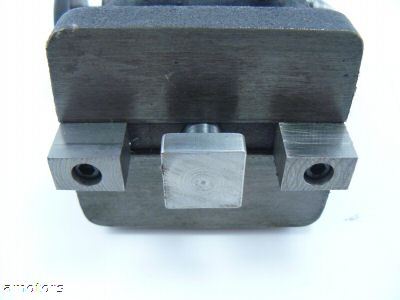

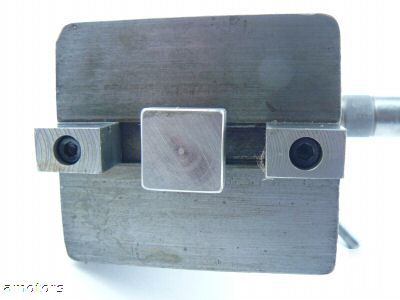

with a hexagon clamp bolt. The removable keys permit the tailstocks to be applied directly to any
machine table. The SB-4 Sub-Base also accepts various combinations of fixtures such as the
HV and H-4 series of indexing fixtures.
Description Part Number Figure Model
Tailstock — With Rapid Movement Lever HV-0000056 1 L-4
Tailstock — With Screw Adjustment HF-0000056 2 T-4
HARDINGE WEBSITE http:// /usr/pdf/collet/2372CLR.
