Cam tech L20 laser

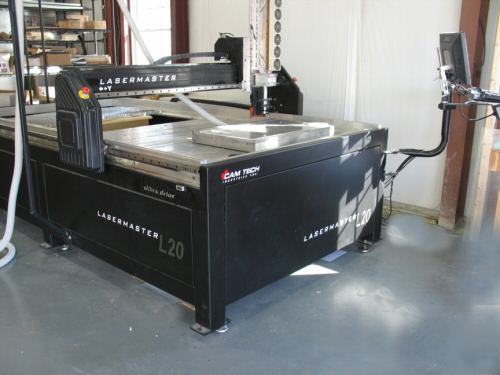

CAM TECH L20 LASER WITH 55 WATT COHERENT HEAD · 52" X 102" BED FOR LARGE MATERIALS
EXCELLENT CONDITION Used less than 200 hours manufactured May 2006. It has a coherent diamond 55 watt air cooled head. It has a 70 watt output. Can ETCH on Glass, stone, anodized aluminum and wood just to name a few. It also CUTS wood, acrylic and many other types of material. Perfect for the largest materials and substantial jobs.
· The table has a 52†X 102†process area.

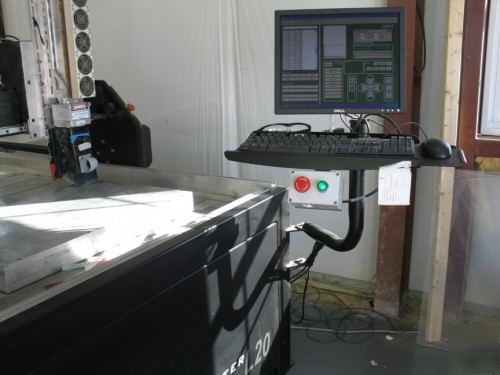

· Windows based CMC4 controller.
· Windows XP Pro computer with 17†LCD flat panel monitor.
· Photograv and Corel Graphics suite
· Removable top allowing a 36†under gantry clearance for large products .
The L20 is a high-speed LASERMASTER. Using Ultra-Drive motors, this speedster makes quick work of even the most complex job.
Featured on the LASERMASTER L20 is new control software called CMC4 Smart Raster. This intelligent software sends the laser head to only the positions on the material where the laser must etch, which shortens the time required to engrave an image immensely. The combination of Ultra-Drive motors and smart rastering software makes the L20 one of the fastest machines in the world when etching on stone, glass, tile, anodized aluminum, and other materials.
I have attached a link to a very detailed description of the machine as well as 2 movies that I made showing the machine in action. I am vector cutting 1/4" acrylic.
http://www.camtech.ca/files/machines/lasers/L20LineDescription.pdf
http:// /watch/1103546/cam_tech_laser_l20_vector_cutting_1_4_acrylic/
http:// /watch/1103559/cam_tech_l20_rastoring_and_vector_cutting_a_simple_shape/

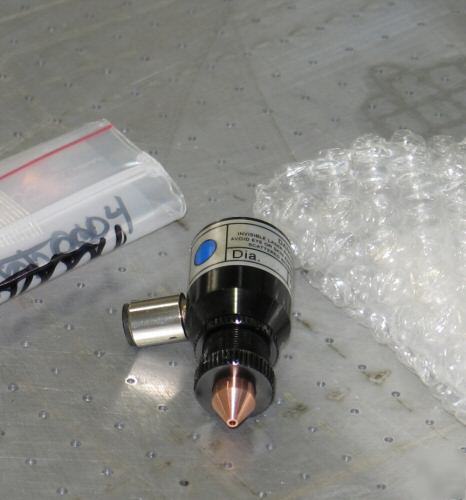

A second gas jet manifold with a brand new lens a $1350 value

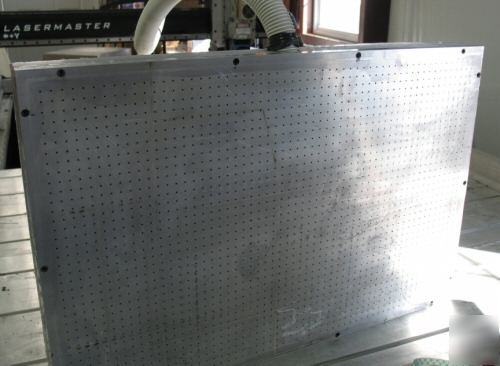

20 x 30 vacuum table made out of 3/4" aluminum
The reason that I am selling this machine is that when I first started out in business I was doing large murals and glass work. We have changed direction, and looking to move into a retail location. All of my work is being done on a smaller machine. Since I am mostly using my smaller format machine, I do not need a large machine. This machine runs beautifully and has served me well on the largest of jobs.
What you could do with this machine
* ACRYLIC and PLASTICS CUT AND ENGRAVE
* MARK ANODIZED ALUMINUM UP 4' X 8' SHEETS
* ETCH PATTERNS FOR STAIN GLASS MANUFACTURING
* PAPER AND CARD BOARD LARGE POINT OF PURCHASE DISPLAYS
* ETCH, ENGRAVE AND CUT WOOD
* PRODUCE LARGE TEMPLATES FOR COUNTER MANUFACTURING (YOU COULD CUT 1/2 PLYWOOD ON MULTIPLE PASSES)
TO BE ABLE TO GET INTO A LARGE FORMAT LASER FOR THIS PRICE IS A VERY UNIQUE OPORTUNITY
Freight is not included. FOB from zip code 12590.
