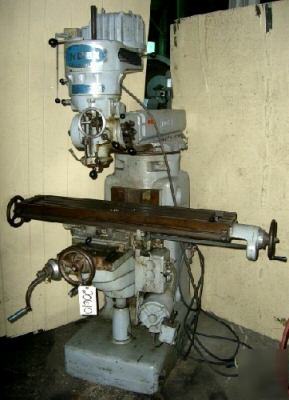

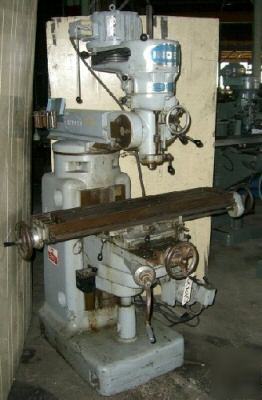

Index vertical milling machine, no. 845 (20610)
Index, MD. 845, 9"x 46-/12" TBL, Step Pulley, TBL Power Feed, 2 HP, 60/3phase
MODEL NUMBER.........................845
SERIAL NUMBER........................15382
LONGITUDINAL........................32"
CROSS...............................12"
VERTICAL KNEE.......................18"
QUILL...............................5-1/4
OVERARM.............................30"
Center of Spindle to Column Face....Min. 2-1/2" - Max. 28"
Center of Table to Column Face......Min. 6" - Max. 18-3/8"
Spindle Nose to Top of Table........Min. 0" - Max. 18"
Working Surface.....................9" x 46-1/2"
Table Feeds.........................(8) 3/4 to 9-1/2" I.P.M.app.

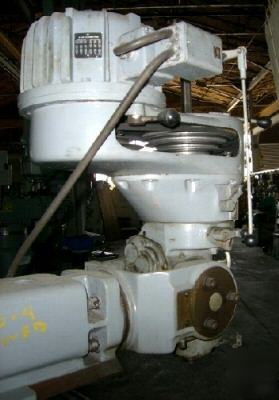

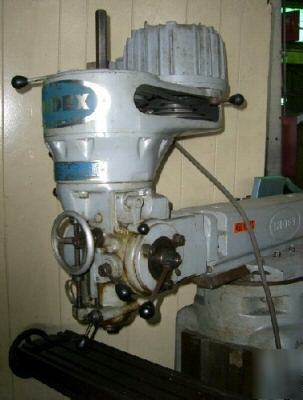

HEAD, SPINDLE, QUILL AND TURRET
Turret & Overarm, Around Column.....360
Head Tilt (Front to Back)...........45-0-45
Head Tilt (Side to Side)............180-0-180
Spindle.............................R-8
Spindle Speeds......................(8) 75 to 2850 RPM
2 HP 1800 RPM Motor 220/440/60/3
Approximate Weight..................2390 lbs
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**********PLEASE READ BELOW**********
**Skidding, crating, palletizing and/or packaging of any item are an additional cost and will be added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge. **
**Skids shown in pictures are not included with the item. **
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. Our toll-free number in the U.S. (***)-745-6008 or (***)-542-8400 e-mail address is ****@cwwood.com
