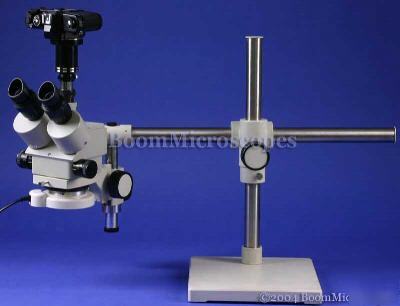

Headrest + 3-45X zoom boom stereo trinocular microscope
BoomMicroscopes is a name you can trust. We specialize in providing high quality boom mounted microscope systems for use in circuit board repair, quality control, and surface mount device work. These microscopes are also excellent for engraving, document examination, and many other applications requiring specimen magnification over a large working area. Call us today to discuss your particular application so we can recommend a microscope that fits your needs. Toll Free (***)-215-3795.
Search in titles & descriptions
* Boom Stand Mounted Stereo Trinocular Zoom Microscope!
* Great for Repair of Small Items or for Circuit Board Repair and Rework!
* Bright and Clear 3-D Stereoscopic Images through High Quality Zoom Optics!
* Great Economical Price! Priced Hundreds Lower than Competition!
|Trinocular Photography Port
* Photograph Your Own Specimens!
Have Your Own Complete Digital Video Microscopy System!Capture Images With Your Computer!* Display Images on a High Resolution CCTV Monitor or Television!
* Videotape What You See Under the Microscope!
* Versatility - Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
* Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.
* Boom Stand for Maximum Versatility and Working Area!
* This Classic Design of Boom is Economical, Simple, and Effective.
* Boom can Easily be Raised, Lowered, and Turned.
* Boom Arm can Swing Towards Working Area, then Swing Out of the Way to Save Valuable Working Space!
|Eyepieces and Magnification
* Zoom Range 3.5 - 45x Continuous Magnification.
* 3.5 - 22.5x w/ Included Bottom Lens on, 7 - 45x w/o Bottom Lens on.
* Eyepiece Set Included: 30mm Wide Field 10x.
* Bottom Lens Included: 0.5x. When present, this will approximately double the working distance as the scope head is elevated farther from the specimen when in focus.
* 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 50 to 66mm InterPupillary Distance.
* Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
* Includes Fluorescent Ring Light for Bright and Even Illumination.
| Focusing and Working Distance
* Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
* Rack and Pinion Steel Gears for Focus Movement.
* Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 90mm - w/o Bottom Lens on, (120mm w/ Bottom Lens on).
| Frame - Base - Size - Weight
* Solid Steel, 1 Inch Thick Boom Stand Base Plate.
* Includes Rubber Eye Guards for Blocking Stray Light.
* Optional 25x Eyepieces will Increase Magnification Up to 112.5x.
* Manufactured under ISO: 9001 Standards.
* Protective Molded Styrofoam Container.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
| 5 Year Manufacturer's Warranty
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
* Head-Rest Included! If you spend long hours under the scope, a headrest is important to eliminate head/neck/back strain.
Camera and Attachment NOT Included.
Click thumbnail photos to enlarge
All images taken using this Microscope!
Taken by our In-house Technicians.
This system is capable of this type of connection.
Digital Camera - PC Connectivity.
This system is capable of this type of connection.
