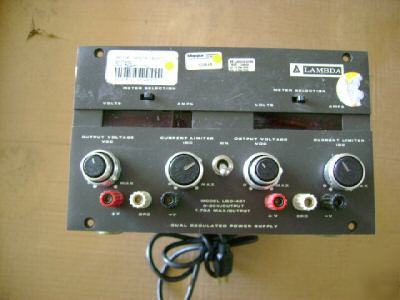

Lambda dual regulator power supply model lqd-421
Pure DC for low noise, high reliability applications
* Ripple: 150 uV Regulation: .005% Pure DC best describes these specifications that make the LQ series ideal for low noise ATE, lab, or any application requiring high quality and reliability.
* The LQ series is designed using a multi function voltage regulator IC with built-in chip temperature regulation.
* All models feature a digital readout, constant voltage or constant current operation, and packaging designed for bench or rack mount use.
Regulation, Line: 0.005% + 0.5 mV for line variations from 105 to 132 VAC.
Regulation, Load: 0.005% + 0.5 mV for load variations from 0 to full load
Ripple and Noise: 1mV pk-pk, 150 uV RMS with plus or minus terminal grounded.
Temperature Coefficient: +/1 (0.005% Vo + 10 uV)/deg C with external programming resistors
Remote Programming Resistance: 1000 ohm/Volt nominal
Remote Programming Voltage: Volt per Volt
Regulation, line: 1 mA max for line variations from 105 to 132 VAC.
Regulation, load: 2.5 mA max for load changes from 0 to rated DC voltage.
Line: 105 to 132 VAC (47 to 440Hz) standard input. (derate output by 10% at 50Hz). Consult factory for operation above 63 Hz.
Operating Temperature Range: Continuous duty from 0 to 60 degrees C with appropriate deratings above 30 degrees C.
Cooling: Convection cooled, no fans or blowers required.
LQD-421 (0 to 20V, 0 to 1.7A) Compared to the popular HP 6236B, this supply has more than three times the power output, only half the noise, true dual outputs (for series or parallel operation), adjustable current limiting, and digital readouts. One available, Good Condition.
IF YOU HAVE ANY QUESTIONS PLEASE CALL (***)-200-0156. (G1C). THIS ITEM LISTS OVER $2200.00 NEW. GUAR. NOT D.O.A.
