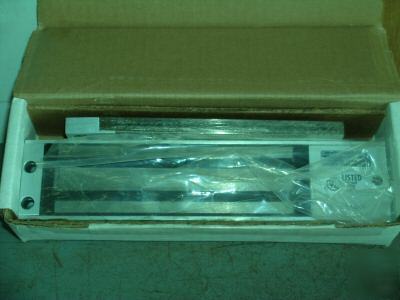

Dynalock 2011TJ single electromagnetic lock in swing
SINGLE ELECTROMAGNETIC LOCK IN SWING
The 2000 Series is a full size 1200 lbs. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specify for commercial, industrial, or institutional openings when low cost and high security are required.
All 2000 Series locks are designed for ease of installation with adjustable mounting, field selectable voltage, and convenient wiring compartments. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate “door contactsâ€.
The 2000 Series is offered in single, double, and split armature models for both outswinging and inswinging doors. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.
* Internal wiring compartment includes built-in
circuit board attached to access cover to provide a
convenient, plug in, concealed area for wiring
* Low power consumption conserves energy,
reduces operation cost, and extends battery backup
* A totally plated coil and armature provides
protection against corrosion.
* A narrow backset of 1-1/2†may mean the
elimination of other mounting brackets or filler plates.
No residual magnetism - the door releases without
delay when lock is de-energized.
* Multiple sensor and monitor options increases
flexibility, security and compatibility with system
* Built-in spike suppression protects other solid state
components within the system from damage when the
* Lifetime Warranty - American Made in the USA by
DynaLock, with over 20 years experience in the
manufacture of electromagnetic locks.
