Tescom 316LSS high purity regulator 0-30 clean room
TESCOM 316L SS HIGH PURITY REGULATOR
This high quality TESCOM Regulator was manufactured in the USA by Tescom High Purity Controls Division

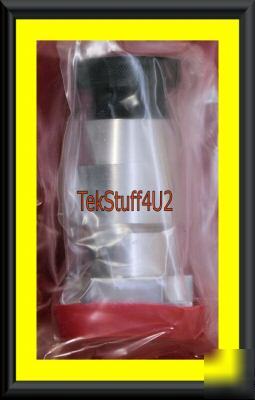

SORRY FOR THE POOR QUALITY PICTURE. The regulators are clean room sealed in double packaging and I don’t want to contaminate one.
If you would like a copy of the engineering drawing please send me your e-mail address and I will send you a copy.
Tescom 24-1 Series Regulator is spring loaded, hand operated, positive seal design. Pressure reducing regulator with metal to metal sealed diaphragm, 10 Ro microinch on all wetted surfaces and E5500-C clean
1. Fluid Media: All gases corrosive / non-corrosive requiring high purity regulation
2. Maximum pressure rating: 0-150 (10.3 Bar)
3. Materials in contact with media
a. Body: 316L VAR Stainless Steel
c. Trim Material: 316L Stainless Steel
d. Diaphragm: 316L Stainless Steel
e. Valve Stem: 316L Stainless Steel
f. Seal Disc: 316L Stainless Steel
a. PCTFE-F-81: -40ºF to +220 ºF (-40ºC to +105)ºC
9. Regulator mounts to a flat surface with four fasteners; 1.19 on centers
1. Tescom High Purity Regulator 24-1A11IGS2C-019
2. Printed Engineering Drawing
3. Clean Room Sealed to E5500-C
TESCOM NEW PRICE IS: $897.00 ea
PS: Did I mention it was made in the Good Ol' USA!
