215-153 cincinnati quill retraction miller simplex

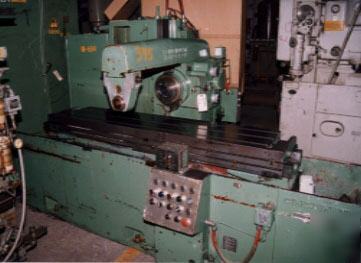

Liberty Machinery Company You are looking at a No. 215-153, Cincinnati, Quill Retraction, 15" x 63" Table, 36" Travel Serial No. 311320D5V-2 Condition - Used New - 1970 Motor Driven with 15 HP, 3 Phase, 60 Cycle, A.C. Spindle Drive Motor. 5 HP, 3
Phase, 60 Cycle A.C. Hydraulic Feed Drive Motor with Free-Standing Electrical
Control Cabinet and Machine Mounted Operators Master Control Panel with Manual
and Auto-Cycle Selectors. M.D. Coolant. SPECIFICATION:Working Surface of Table 15" x 63"
Overall Size of Table 15" x 71"
Vertical Adjustment Spindle Carrier 10"
Center Line Table to Spindle Carrier 11"
Face of Spindle Carrier to Outer Support 18-1/2"
Center Line Table to Spindle - Maximum 10"
Top of Table to Center Line Spindle - Maximum 14"
Distance, Underside of Overarm to Center Line Spindle 6-19/64"
Size of Spindle Taper No. 50 NST
Speed Range (16) 50 - 3000 RPM
Feed Range (Infinite) 1 - 150 IPM
Approximate Weight 11,000 Lbs. EQUIPPED WITH:Automatic Quill Retraction. Automatic Spindle Stop. Automatic Backlash
