Dml 60MM str bore corrugated head 2 knife 22 hook 1-1/4
DML 60mm (2-3/8") Straight bore corrugated head 2 knife 22 hook 1-1/4
Not an easy hook angle to find, very useful for softerwoods, a hook that is easy on the knives and machine.
Your opportunity to acquire a heavy duty industrial 2 knife corrugated back shaper head with 22 degree hook
* 22 degree hook, appropriate hook for softer woods: gum, popular, spruce , pine, green or wet basswood, hemlock if green or wet. This is a decent head for paint grade runs
* XL Moulders: head has pin bores: 1-13/16 OC 7/32" diameter x 3/8" deep
* can run 1/4", 5/16", and 3/8" corrugated steel
* Precision Machined by dml lineberry USA
Corrugated cutter heads can be used on shapers , moulders, tenonners, copy shapers and CNC Routers with arbor shank tool holders.

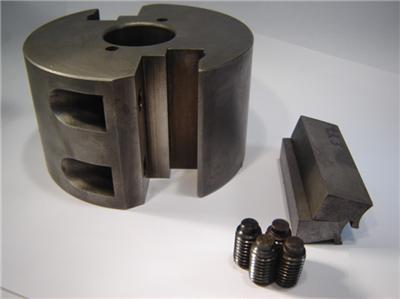

Question: Why do you take everything apart before you photograph it?
* 1) We take the tool apart and see if any of the threads are damaged and to make sure every thing works.
* 2) We balance the heads stripped, all components are independently balanced. (head, gibbs, screws) Unless we number the gibb to pocket, you can be assured the gibbs are free to move about the head. We generally try to achieve this. More work for us, but less room for error with your production staff. We measure each screw & each gibb for balance to within .1 grams, often we hit it on the spot with a relief. Since we stock many of these heads, we have a drawer of screws which are weighed to the .1 of a gram. Instead of taking a little off the screw, we will swap for a set of balanced screws. Gibbs are relieved and balanced.
* 3) It allows you to inspect the condition of the tooling.
1. Can you explain the program?
USA including Peurto Rico $10.00 up to 70lbs
Canadian and Mexico $22.15 up to 20lbs
UK, Europe, Asia and Australia $35.15 up to 20lbs
Yes, typically a box will hold 35 sets of knives, sometimes more. At $4.50 per knife this would be quite a savings.
if you have questions, please ask, we will be happy to help.
