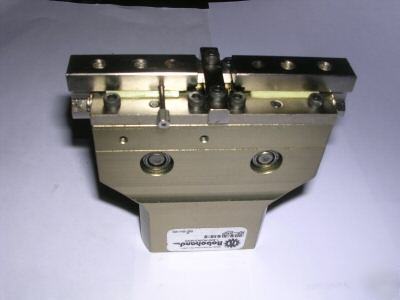

New robohand parallel precision gripper, rp-25P
New Robohand Precision Parallel Gripper
Maximum Total Grip Force 80 pounds at 100 psi with no Fingers
Maximum Dynamic load is 30 pounds
1" Bore and 1-1/8" Total Stroke
(2) Air Ports are 10-32, 5-100 psi Air Pressure
(2) Tooling Faces are 7/16" by 1-9/16" with (4) 10-32 Tapped holes and (2) 1/8" Dowel Holes
Tooling Faces meet in Retracted Position
Uses sensor OISN-014 or OISP-014 with sensor bracket OSKM-004 (Sensors and brackets not included)
we have OISN-014 in stock at time of listing
For More information is available at Robohand's Site @ http:// /doc/ds/USA/ENG/rpp.pdf
