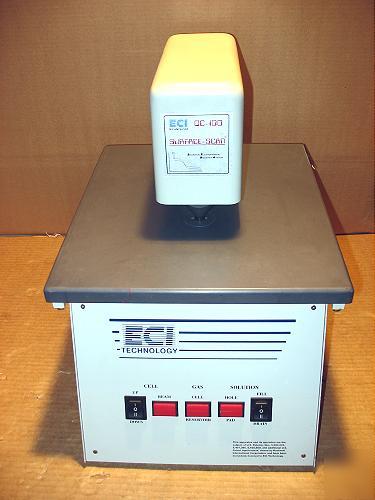

ECI Technology QC-100 SERA Surface Analysis System
ECI Technology QC-100 SERA Surface Analysis System
ECI Technology QC-100 SERA Surface Analysis System
ECI Technology QC-100 SERA Surface Analysis System
ECI Technology QC-100 SERA Surface Analysis System
ECI Technology QC-100 SERA Surface Analysis System
Info from Mfg website belived to be correct but not guaranteed.
Semiconductor & Printed Circuit Board Surface Analysis Tool for Solderability and Wirebondability Quality Control
QC-100 SURFACE-SCAN, provides a convenient, reproducible, and user-friendly method of analysis for determining the surface conditions of your product.
SERA (Sequential Electrochemical Reduction Analysis) is an electrochemical technique used to determine a variety of key coating parameters. These parameters are then used to evaluate and predict the solderability, wirebondability and adhesion characteristics of printed circuit boards or semiconductor wafers and lead frames.
In practice, a test piece is mounted and a small well-defined area is isolated for measurement. A controlled current is applied to reduce or oxidize surface species. As the test occurs, the potential is followed as a function of time. Recording potential vs. time yields a series of plateaus corresponding to the sequential reduction or oxidation of surface compounds. The voltage levels identify the types of species present, and the time at each level measures the amount present.
• IBM PC compatible SERA Analyzer
• Corrosion resistant test stand for analysis of boards or wafers up to 15” x 24” (larger sizes optional)
• Sealed reservoir for test solutions
• Low maintenance reference electrode
• Beam alignment for PHT or SMT pad positioning on the stand • Pressure regulator with flowmeter
• User-Friendly, menu driven analytical software, running in MS-Windows environment.
• Real-time surface fingerprint on to the printer
• Data storage in MS-Access (included)
• Capability to compare/overlay SERA plots
• Pre-programmed applications for various alternative surface finishes
SERA is a patented technology from Rockwell International.
Includes Software, Manual & Cables as Shown.
