New 225 ton primeline 225 x 12 platinum package

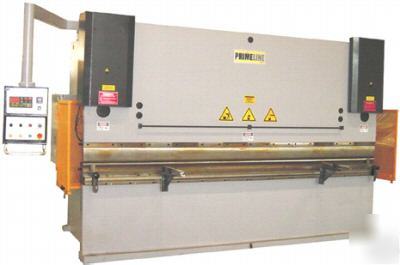

One New PRIMELINE 225 x 12 Platinum Package
Hydraulic Press Brake, Downstroking Type
Bending length - overall - 145.67"
Distance between housings - 127.95"
Stroke - adjustable (including screw adjustment) - 9.84"
Speeds of ram - inches per second:
Tank capacity - gallons - 55.48
Dimensions, with all sheet metal covers mounted,
approximately L x W x H - 157.48 x 64.96 x 102.36"
Weight - lbs. - approximately 28700
Machine Features/Standard Equipment:
Downstroking moving beam (ram)
Fully hydraulic design and operation, utilizing two
Cylinder pistons ground, hard-chrome plated and
ground a second time for precision and
Adjustable working pressure and pressure regulating
All-steel, monoblock construction
Torsion bar for ram parallelism
Infinitely adjustable mechanical depth stops, push-
button operated with electronic digital readout
Two-speed ram advance (hi/low)
Controls in a swivelling console on the machine, a
movable pedestal with two-hand control, foot
control, and emergency stop control
Two front support arms adjustable left-to-right on the
Sheet metal safety guards at back and sides of the
Electrics for 3/60/220 or 3/60/440 with controls as
indicated above. Low voltage at the controls.
Safety limit switches for minimum and maximum
settings of travel in power ram adjustment
and power front operated backgauge
The Tooling Included Features:
Upper beam set up to hold American style forming
punches with standard safety tongue (drawing
One gooseneck forming punch and one multiple-
opening lower die (drawings on request)
One each lower die holder for American lower dies
Font-to-back wedge arrangement in bed for die
The Backgauge Included Features:
Programmable power backgauge with aluminum
rail bar for easy, smooth operation
Manual R axis (height of back stops)
Manual Z axis (side-to-side adjustment of backgauge
Elgo 200 step programmable control for X axis position
(backgauge front to back for flange dimensions)
and for Y axis position (ram depth for bend angle
Delivery: Stock, Subject to Prior Sale
The machine quoted here includes electrical components that will
handle a voltage variance of +/- 5% from 220/440 volt. If your true
incoming voltage under load exceeds this range, please advise upon
ordering and the proper components will be sent (may require extra
charge, depending on actual voltage); or, you will be subject to
Comprehensive press brake operator training programs which include
safety instructions are your best protection against employee injury
which, in addition to the human cost of bodily injury and poor morale,
significantly increase your operating expenses. However, operator
safety programs must be supplemented by press brakes which are safe
to operate. PRIMELINE press brakes have been designed with the
operator's safety in mind. PRIMELINE press brakes offer ADDITIONAL
FEATURES, which can be purchased to enhance the safety of your
