medeco M3 high security deadbolt lock single

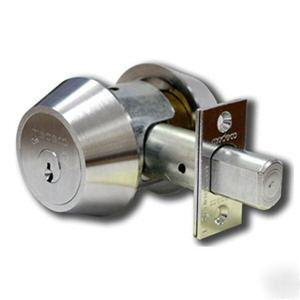

Medeco M3 SINGLE Cylinder SATIN CHROME High Security Maxum Deadbolt.
11W0102-PA1 Medeco Double Cylinder Medeco High Security Patriot Maxum Deadbolt.
11W0102-PA1 Medeco Double Cylinder Medeco High Security Patriot Maxum Deadbolt.
Looking to purchase more keyed alike ? WE CAN MAKE THE SAME KEY FOR AS MANY LOCKS AS YOU NEED !
card protection against unauthorized key duplication + keys
Exceeds ANSI Grade 1 standard for auxiliary locks. Solid brass, free turning collar and 1/4 inch diameter mounting bolts resist wrenching, prying and hammering attacks. 1 inch throw hardened steel bolt resists sawing and crowbar attacks. Hardened steel inserts and rotating pins provide drill and pick resistance according to UL 437 standard. The MedecoFeatures & Benefits:
* Bolt mechanism designed to accommodate both mortise and drive-in applications, which provide greater flexibility and ease of installation.
* Solid brass collar spins under pressure to prevent wrench attacks.
* Large thumbturn provides ease of use by physically challenged individuals.
* Steel shroud over bolt protects against “ice pick†type attacks.
* High security strike plate has a special box design with 2†screws that anchor the strike directly to the building structure behind the frame, preventing “kick-in†type attacks.
* Hardened steel bolt and bolt throwing mechanism are surrounded by a heavy-gauge tubular steel housing for maximum resistance to crowbar attacks.
* Solid brass design is secured with high-tensile steel mounting bolts for maximum resistance against hammer and prying attacks.
* Utility patented key control, (for cylinders that incorporate the Medeco design), provides protection against the unauthorized duplication of keys.
* A special elevating and rotating pin tumbler design, along with false slots on the bottom pins, mushroom top pins and a sidebar mechanism, work together, to provide superior pick resistance.
* Angled cuts on the keys, along with fore and aft positioning, and the reciprocal slider of the Medeco design, provide added dimensions that dramatically increases key combinations and enables Medeco® to produce some of the largest master key systems in the industry.
* Hardened steel inserts, positioned in critical areas of the cylinder, provide a high degree of drill resistance.
* 8 different finishes provide an extremely close color match with existing hardware.
* UL437 listing provides assurance that cylinders meet universal standards for drill and pick resistance and resistance against other types of forced attack.
* 2 year Maxum carries a limited lifetime mechanical warranty.
SINGLE Cylinder + 2 Keys + CARD
2 3/8" Backset, 1 1/8" Faceplate 11W0102-PA1 Medeco Double Cylinder Medeco High Security Patriot Maxum Deadbolt.
Solid Brass body
Satin Chrome finish
