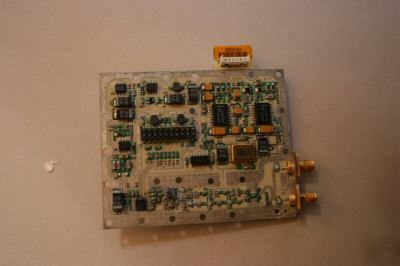

Stellex yig pll controller assembly 2-12GHZ range
Connectors Stellex YIG and PLL
11_ YIG on/off*) 12_ LE (I^2Cbus)
13_ NC 14_ FO/LD output of LMX chip
19_ 10MHz. ref. out 20_ Tune Ref. 0-2.5V
*) connect 5V via 1kOhm to pin 11 for YIG on.
