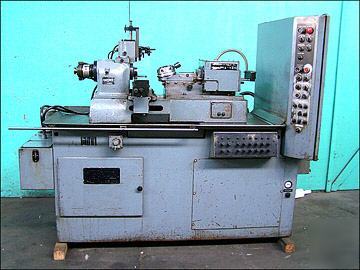

Hardinge dsm-a bar & second operation automatic lathe
HARDINGE BAR & SECOND OPERATION
Spindle Construction: Hardinge Super-Precision Preloaded Ball Bearing
Spindle Capacity: With Round 5c Collets: 1-1/6"
Twelve Spindle Speeds: 250-1000; 300-1200; 450-1700; 650-2600; 900-3500; 1100-4200 Rpm
Hydraulic Sump Capacity: 5 Us Gals
Compressed Air Requirement: 70 Lbs - 90 Lbs
Coolant Sump Capacity: 8 Us Gals
Diameter Of Turret Holes: 5/8"
Dimensions, Approx.: 80-3/4" Lr X 39-1/2" Fb X 66-1/2" H
Super-Precision Preloaded Ball Bearing Spindle
Ball Bearing Air-Operated Power Collet Closer
Hardened And Ground Independent Front Cross Slide
Hardened And Ground Independent Rear Cross Slide
Six Position Ball Bearing Turret Which Is Hydraulic Actuated
Deep Hole Drilling Control For Turret
Control Unit For Programming Complete Automatic Cycle Including:
The Opening And Closing Of Collets
Manual Control Of Power Chucking Is Also Provided
Control Unit For Presetting Of Infinitely Variable Feeds Of Cross Slides
Vertical Slide And Six Turret Positions
Automatic Drive Shaft Spindle Brake
