New victor 0781-1410 sr 4F-680 high pressure regulator
Scott-Gross Company, headquartered in Winchester, KY, was established in 1949 and is primarily known as a supplier of Industrial, medical, and specialty gases, bulk and cryogenic gases, dry ice, welding equipment and supplies, welder rental and repair, and propane exchange. Scott-Gross Company has retail stores located in Kentucky, Pennsylvania, Arkansas, Oklahoma, and Texas.

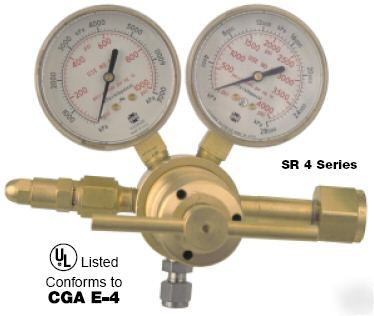

Victor 0781-1410 SR 4F-680 High Pressure Piston Regulator - NEW
Brand New - Victor 0781-1410 SR 4F-680 High Pressure Piston Regulator
APPLICATION & USES SR 4* SERIES
Ideally suited for pressure vessel testing.
Delivery pressures up to 4500 PSIG on some models.
Dimensions: 6" W x 6-1/2" H x 6-1/4" D
Cartridge type seat assembly with PCTFE seat
Delrin® cap bushing for smooth adjustments
External adjustable relief valves on F and G range models
Hydrogen models have ventable relief valves *CJ Series Does Not
Maximum Inlet with CGA 677....................................7500 PSIG
Maximum Inlet without Inlet Fitting.........................6000 PSIG
Maximum Inlet with CGA 701, 680, 347....................5500 PSIG
Maximum Inlet with CGA 577....................................4000 PSIG
Maximum Inlet with CGA 540, 580, 346, 350............3000 PSIG
Delivery Range............................................................50-750 PSIG
Body....................Machined Brass
Housing Cap......Machined Brass
To see full specifications, visit http:// /uplFiles/litLibrary/victor/016_65-2007.pdf
