5~870M signal level meter/ cable tester
5M~870M CATV signal level meter/Cable tester

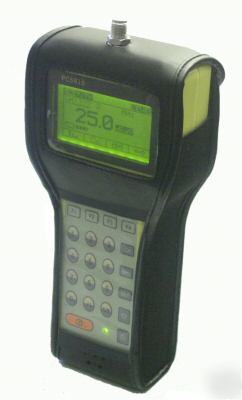

The PolluxCom PC5810 signal level meter comes with a leather case, AC charger. Its small volume and light weight make it easy to carry. PC5810 uses a clear and precise all-number display.
* Spectrum Analyzer Capability
* Measures AC/DC Voltage (automatically show AC or DC)
* Single Channel Mode Width of 6 MHz
* Direct Entry Channel/Frequency Select
* Build-in USA, China, India channel plans
* 128X64 LCD Graphic Display
* Auto Power Shut Off (adjustable)
* 6 Hour Rechargeable NiMH Battery
* Scan result can be stored( totally 5)
* The the level unit can be set to dBuV, dBmV, dBm
* Min. Tuning Increment 50 kHz
* Signal Measurement (-25 to +70 dBmV)-35dBmV to +60
* Measurement Resolution: 0.1 dB
* Measurement Accuracy: ±1.5dB
* AC Voltage Measurement Input Range 0~80V, AC or DC
* AC Voltage Measurement Accuracy ±2V>
* AC Voltage Measurement 0.1V
* External dimensions: 225 X 82 X 130 (mm);
* Whole instrument weight: 0.545kg;
* AC power supply: Input AC 110V~240V 60Hz/50Hz ±10%, Output DC 9V 1.5A
