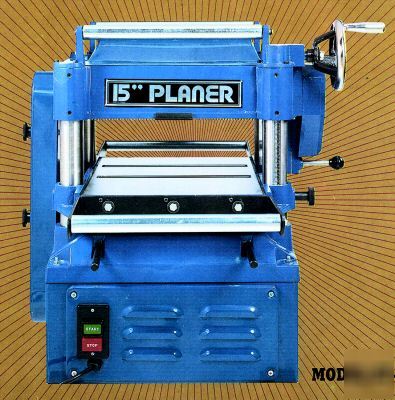

Kbc 15" auto feed woodworking planer wp-15 6-800-008


Complete with Cabinet Floor Stand
15" x 20" bed is heavy ribbed cast iron
precision ground for perfect finishing.
Convenient handwheel adjusts bed through full 6" range.
Front mounted gauge for quick, easy reading.
Cutterhead mounted on sealed ball bearings
2" dia. feed rollers are driven by heavy duty gears.
Roller pressure springs are top mounted
Handy clutch lever starts and stops feed
instantly without stopping motor.
Surfaces stock up to 15" wide and 6" thick.
Includes heavy duty floor stand.
Maximum Cutting Width ..............................15”
Maximum Cutting Height ................................6”
Cutting Travel Per Minute...........................195”
Cutterhead Speed ............................5050 RPM
Cutterhead H.S. Blades...........................3 Pcs.
Drive Motor ......................2 HP, 220V, 1 Phase
Net Weight ...........................................510 lbs.
