Esi dekatran decade transformer DT72A

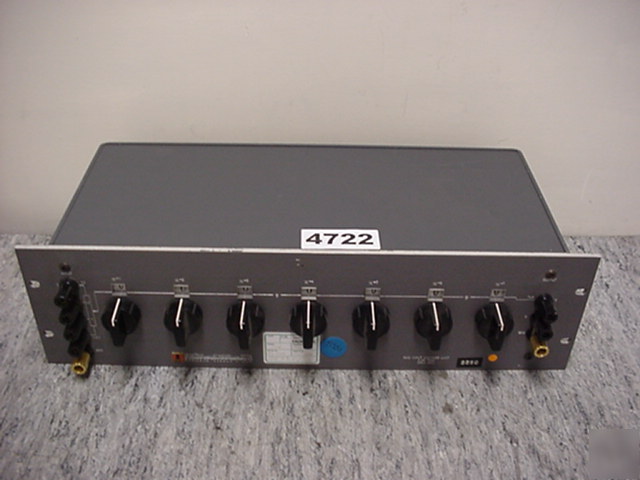

ESI Dekatran Decade Transformer DT72A
Model DT72A is an inductive, AC voltage divider, which meets or exceeds all of the requirements for a calibration standard. The unit has seven decades with combined capability to produce AC ratios from -0.0111111 to +1.1111110. Operating from frequencies of 50Hz to 10kHz, the DT72A can expand the range of any precision voltage source by dividing the source's output to .9ppm terminal linearity(for settings 50 to 1kHz, 0.1 to 1.0 ratio)
Frequency Range...50 to 10kHz; Max input...0.35f (f in Hz) or 350 Volts, which ever is less.; Ratio range -0.0111111 to +1.111111; Resolution...0.00001% (0.1ppm); 1 Year Warranty
Used for calibration of AC voltage dividers, transformer standards, synchro/resolver standards, transformers, calibrators, ammeters, and voltmeters by serving as a precision AC voltage divider.
Local Pick up is also available at our office in Clayton South VIC 3169 with 24 Hrs Prior Notice.
Building Trust in Transactons (tm)
If you have any questions please contact Naing Nyunt or
Phone (switch) +613 9558 0004 Ext : 138
Office Hours are 9.00AM - 5.00PM
