#220-8 cincinnati-milacron centerless grinder #24332

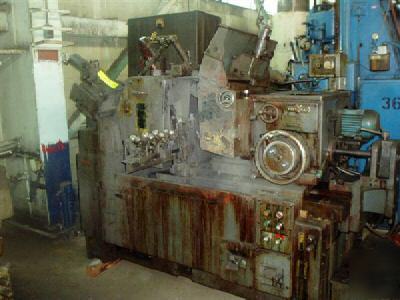

#220-8 CINCINNATI-MILACRON CENTERLESS GRINDER
New 1958, Serial No 2M2H5ME-16, Model 220-8, Ltr LR,
8" Thrufeed Work Rest w/2' Bar Feeder (In & Out)
Hand Regulating Wheel Slide Infeed Unit
Hydraulic Grinding Wheel Profile Diamond Truing
Hydraulic Regulating Wheel Profile Diamond Truing
Diameter Capacity, Nominal.............. 0" to 3"
Diameter Capacity, Maximum.............. 4.5"
Grinding Wheel Diameter, Minimum........ 15"
Grinding Wheel Diameter, Maximum........ 20"
Grinding Wheel Width, Maximum........... 8"
Grinding Wheel Hole Diameter............ 12"
Regulating Wheel Diameter, Minimum...... 9.75"
Regulating Wheel Diameter, Maximum...... 13"
Regulating Wheel Width, Maximum......... 8"
Regulating Wheel Hole Diameter.......... 5"
Regulating Wheel Speeds, Low Range...... 15 to 56 RPM
Regulating Wheel Speeds, High Range..... 56 to 300 RPM
Grinding Wheel Motor, Horsepower........ 20 HP
Regulating Wheel Motor, Horsepower...... 1.5 HP
Electrical System....................... 220/3/60
Floor Space Required, W x D............. 10'10" x 7'11"
Weight, Approximately................... 13000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $9,250.00
All machines/equipment subject to prior sale.
