2-axis dro kit bridgeport knee mill, spindle scale


SMW Professional DRO System is unmatched for Toughness, Accuracy and Machining capabilities. It is the only DRO system Kit that includes a 3rd Scale for Milling Spindle. Kit has a 2-Axis Display and includes 3 system scales; DRO Kit is designed for BridgePort and similar Knee Mill’s. It’s a complete DRO Retrofit Kit includes Display arm, mounting brackets and all hardware.
PRO Spindle Milling System provides full 3-axis digital measurement control. Our 2-Axis display supplies positional calculation for Spindle Scale in complex XZ & ZY operations. Installation of a SMW Precision Professional DRO System will unlock the Machining capabilities of your Knee Mill. In doing Offsets, Angles and Curves with Superior Speed & Precision in straight line Milling. A Quality DRO System that is built too last.
* Scale Accuracy, Dimensional Stability and Repetitive Accuracy in measurement is Critical; all Scales have a measurement some deviation or +/- error factor. Resolution is not Accuracy compare Scale Accuracy specifications. Scales and measurement technologies do vary greatly in Linear Accuracy and measurement deviation.
* System Construction is System built for long term Survival in your Machining Environment.
* Ease of Use; Memory and Features in a DRO System need to be considered. DRO systems are a Long Term investment a poorly designed System can cost you greatly in time and productivity.
Scale Accuracy & Repetitive Accuracy is the Core Element in any DRO System. Our Scales Deliver the Industries highest precision each Scale is Serial Numbered and Factory Certified for Accuracy!
Optical infrared measuring system, wavelength:880mm
>800 inch/min(1micron) >2400 inch/min(0.0002”)
Temperature 32-105° Moisture 90% (20±5°)
(All Scales are Guaranteed too meet Listed Specifications)

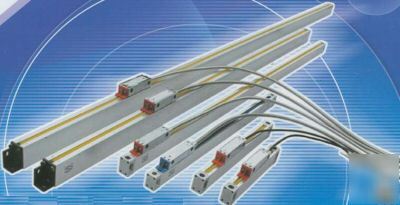

Scale technology is the Superior form of Grid Measurement using an Encoder too read a line marked media strip. Measurement strip is incased in a specialized Dimensional Stable Glass tube. Set in a shock resistant mounting within a rigid extruded aluminum outer casing. Scale is sealed with an outer chip deflector and inner Dust and Fluid Resistant seal. Seals are constructed of a specialized anti-aging oil proof plastic. Infrared Encoder travel is on 5 precision Ball Bearings.
BridgePort Knee Mill Retrofit Kit Contains;
* 2-Axis Milling DRO Display
* 2 JCFX5 Scales 5um/0.0002” Resolution
* Scale Mounting Kit & Installation Instructions
* 6” Digital Display Scale 0.0005 Resolution
* Spindle Scale Mounting Kit
* 5 year DRO System Warranty
* On/Off Toggle Switch on back
* Lithium Battery Memory Backup
* Clear Plastic Harsh Environment Cover

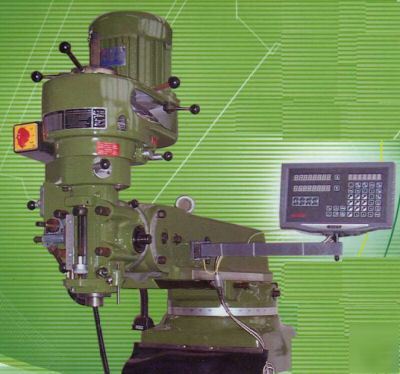

Kit Installs on BridgePort Milling Machines and Similar Knee Mills. Scales of the correct Travel Length will be sent for your Machine. Spindle Scale kit installs in about 10 minutes on BridgePort and Similar Head Configurations. Total Kit installation time averages 2 to 3 hours with common hand tools, caliper and indicator. We can also supply kits for a wide range of other machine Tools Lathe, EDM and Surface Grinder.
SMW Precision is the North American Design & Distribution Partner for Foic Measurement Systems. Foic is the Worlds largest and Oldest Asian maker of Precision Linear Measurement Systems. Our Systems reflect over 40 years of development and manufacturing excellence in Precision Linear Measurement.

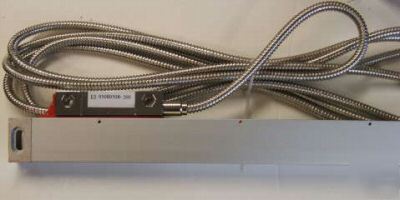

Durability low maintenance system design requires about 10 minutes of annual Scale maintenance. Extended operational life! In 7/24 machining usage our DRO System has consistently survived machine tool life cycles of 5 to 10 years. System Display begins with a Precision Die Cast 7 pound aluminum casing. Case is sealed and has a Splash Proof Front. Scales are connected to Display with an armored Stainless Steel cable wrapping interference resistant insulation. System is exceptionally resistant too Signal Interference.

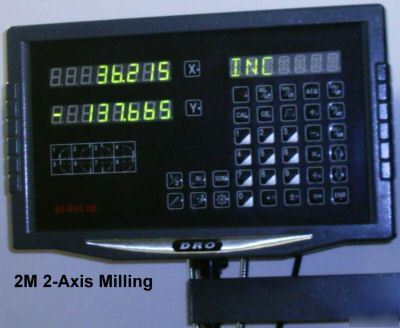

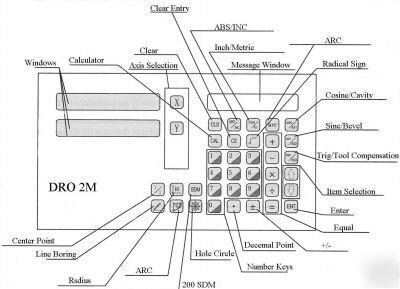

Ease of Use PRO System supplies an Alpha/Numeric message Window along with display for each Axis. Characters are an easy to read 5/8th inch LCD in high visibility, low eye fatigue yellow/green. Entry keys are positive click with audible signal that minimizes mis-keyed entries. Standard machining is accomplished by using ABS/Absolute and INC/Incremental measurement Modes. Repetitive part production is quick with a 200 point SDM memory.
System supports most Offsets, Angles and Curves. Fast repetitive part production; without special fixtures.
* Radius with XZ & ZY Support
* Bevel and Climb Bevel XZ & ZY
* 200 SDM Position Point Memory
* Machining Calculator w/Transfer
* 6 way tool Offset Compensation
Shop Floor proven in Production! Process Calculation support functions are Easy to Use and quick to Learn. Advanced processes are both logical too operate and consistent in operation. Supported Milling processes are extensive and easy to learn. Our 200 point multi-axis positional memory supports complex part production. We offer a full 30 day Money Back Satisfaction Guarantee.
* 200 point SDM multi Axis Position Memory
* Machining Calculator w/transfer
* 5 resolution settings / Scale direction +/-
System Options; Higher Resolution 1um/.00004 resolution scales are in stock for $50.00 more each. DRO system can support up to .5um/.00002 resolution scales available by Special Order.
Your Satisfaction is Guaranteed! All System have a 30 day money back inspection period.
