Mrl industries black max diffusion furnace heat element
This listing is for a furnace element.
* Part / Model #: 400-913921
* Referred to in manual as "Thermco HC-58 Retrofit - Size B"
* Overall Length: 77.5"
* Outside Diameter: 16.25"
* Element Inside Diameter: 13.00
* Vestibule I.D.: 10.50"
* Vestibule Length: 5.75"
* Counterbore I.D.: 12.15"
* Counterbore Length: 2.75"
* T/C Sheath Size: Standard

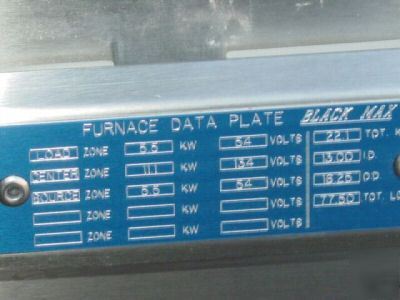

* 5.5 Kilowatts @ 54 Volts. 102.00 Amps
* 6 Elements Each Rated @ 918W. 54V. 17.00A
* Min. Cold Ohms: .457
* 11.1KW @ 134V 82.87A
* 6 Elements Each Rated at 1851W / 134V / 13.81A
* Max Cold Ohms: 1.707
* 5.5KW @ 54V / 102.00A
* 6 Elements Each Rated at 918W / 54V / 17.00A
* ***Please call or email if you'd like us to fax you the drawing diagram.
___________________________________________________________________________________
___________________________________________________________________________________
This is 'new unused surplus stock'. It's been shelved, but never used. Guaranteed to be in proper, working order.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
