New table top cnc router, mill, pcb, 3-axis, mdf,


Another Great Product by Modular CNC.

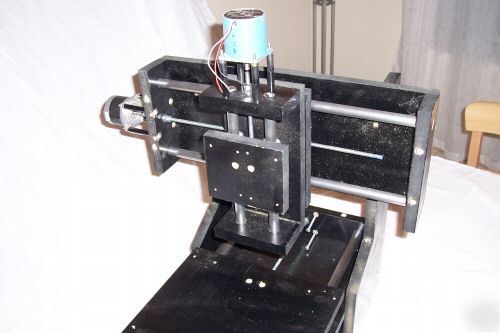

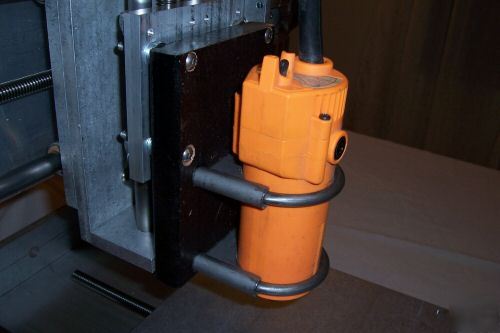

3-Axis Table Top CNC Router (MDF) with Spindle Mount!
* Machine travels are 12" x 11" x 4".

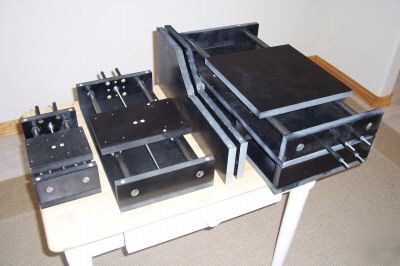

* Overall dimensions: Base measures 6.56" Tall to X axis top plate, 11.75" wide x 23" long w/o motor, Side supports are 3/4" thick x 8" wide x 19" tall, Y Axis is 3.31" tall x 8" wide x 19" long w/o motor, Z axis is 3.31" tall x 5" wide x 10" long w/o motor.

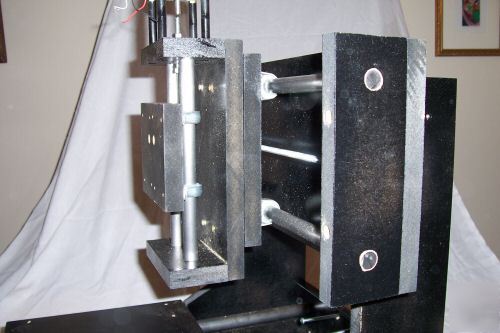

* The linear shafts are 5/8" diameter for Y & Z and 3/4" diameter for X. They are made of cleaned and hand polsihed 1018 steel shaft.
* The linears bearings are nylon mounting in a steel housing.
* The lead screws are 1/4-20 for lower speed, extra torque applications with a double steel and nylon drive nut to help eliminate backlash.
* The machine comes with built in Nema-23 motor mounts and lead screw thrust bearings in the drive end plates. This allows for easy and accurate motor to lead screw alignment.
* All major body components are made of 3/4" thick painted MDF (wood). Easy to repair, replace, and maintain.
* This unit is a perfect starter machine if you are new to CNC programming and operation. It is also great if you need to get up and running quickly and don't want to spend time building your own machine.
* In order to complete the final assembly you will need to drill four holes to locate the gantry to the side supports. This gives you the freedom to set your pass through height (distance beneath z-axis to table top).
* When it comes time to cut I usually attach the workpiece to a separate spoilboard piece. This allows you to cut thorug your workpiece and not damage the tmachine table top.
* Stepper motors, couplers, and trim router are not included.
I always answer emails and provide support after the sale. I have been selling CNC Router components for over 4 years.
For more pictures and information about this machine please visit
