50 ton w.a. whitney single hyd. c-frame punch (20448)

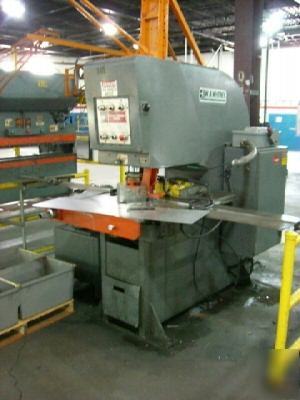

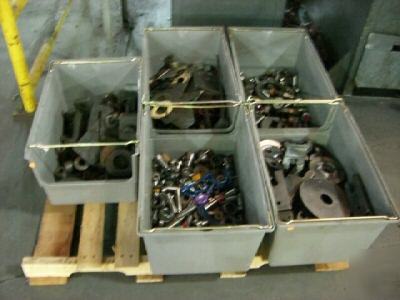

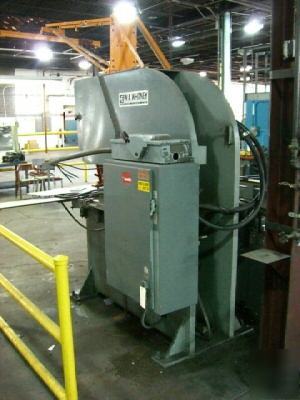

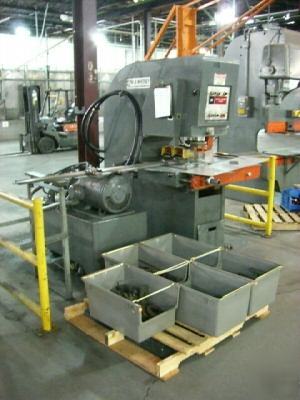

50 Ton Whitney,Md.651,Hydraulic,C-Fram Punch,Gage Bar,Tooling,20 Hp.,60/3 Clean
SERIAL NUMBER…………………….(***)-160-37901
Throat with gaging……………………..19”
Throat without gaging…………………..24”
Shut Height (Less Bolster)………………9-7/8”
Bolster Size………………………………2”x 14”x 22”
Stroke Max. Adjustment…………………2”
Operating Pressure Max. PSI…………….1600 lbs.
Die Height from Floor…………………..40”

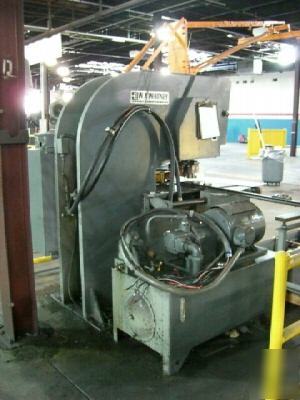

Whitney Model 600-S-20A12 Hydraulic Power Supply
Operation and Maintenance Manual
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**Skids shown in pictures are not included with the item. **
**All items requiring a skid will have an additional skidding fee added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge.**
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. Our toll-free number in the U.S. (***)-745-6008 or (***)-542-8400 e-mail address is ****@cwwood.com
