24" avey single-spindle floor standing drill #24371

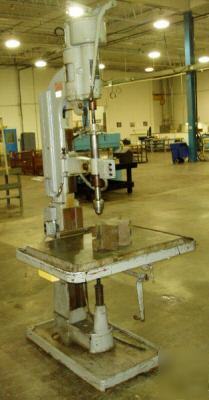

24" AVEY SINGLE-SPINDLE FLOOR STANDING DRILL
Serial No MA10926, Size 2, Style MA-6, Type B,
Adjustable Table Height (Screw-Type)
Drilling Capacity, Cast Iron........... 7/8"
Spindle-Center to Column............... 12"
Swing to Center of Circle, Maximum..... 24"
Table Working Surface, W x L........... 25" x 34"
Height Under Spindle, Range............ 0 to 26"
Rack Vertical Travel................... 6"
Head Vertical Travel................... 7"
Spindle Taper.......................... #2 MT
(6) Spindle Speeds, Range.............. 225 to 1800 RPM
Spindle Motor, Horsepower.............. 1.75/.875 HP
Electrical System...................... 220/3/60
Floor Space Required, W x D............ 3' x 4'
Weight, Approximately.................. 3000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $1,950.00
All machines/equipment subject to prior sale.
