New dso-2090 100MSA/s usb pc digital oscilloscope

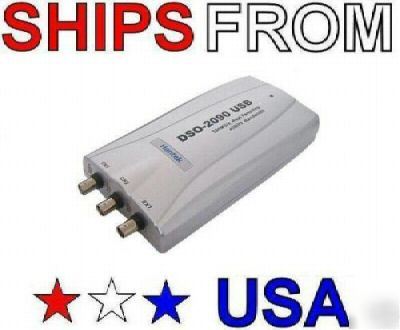

DSO-2090 USB PC-Based Digital Oscilloscope
Dual Channel, 40MHz Bandwidth, DDDD
dso2090_screen1 dso2090_screen2 dso2090_screen3
* Voltage Range: 10mV, 20mV, 50mV, 100mV,200mV, 500mV, 1V, 2V, 5V
* Timebase Range: 4ns/div-1h/div
* Offset Increments: 0.03div
* Trigger Type: Edge Trigger: Rising or Falling Edge
* Trigger Mode: Auto, Normal, Single
* Trigger Level: +/- 4 divisions
* Measurements: Vp-p, Vmax, Vmin, Vmean, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pluse width, negative pulse width, rise time(10% ~ 90%), fall time(10% ~ 90%), positive duty cycle, negative duty cycle
* Math: Addition, Subtraction, Multiplication, Division
* Power: No External Power Required (just USB power)
* Calibration Signal Output: 2V, 1kHz Square Wave
* File Management: Image Save: BMP, JPG, Data Save: Dso, OLE Automation for Microsoft Excel
* Print: Color or Black & White
Sales Tax (Florida Residents only)
* 1 DSO-2090 USB PC Based Digital Oscillscope
