Heidenhain ls 603C linearscale ml=220MM. id. .24992269
Please select only two result that viewed table, I will service only "International EMS-Package" and "International Parcel-Air" EMS also faster!
Learn more about EMS or Parcel-Air service follow these
http:// /product_servicedetail_en.asp?cat_id=5&product_id=44-S-000017
and http:// /product_servicedetail_en.asp?cat_id=6&product_id=44-S-000005

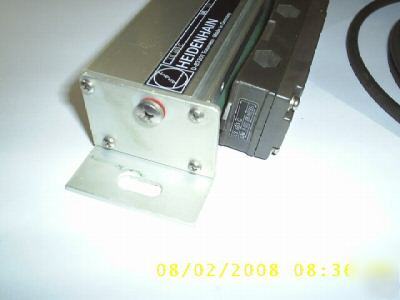

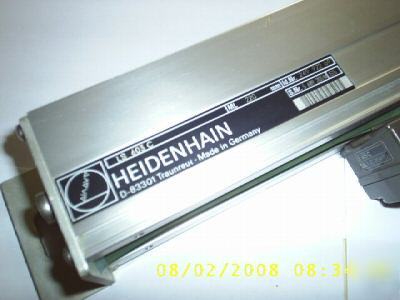

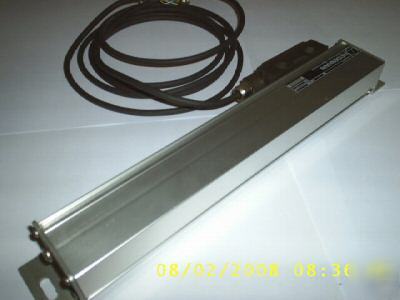

HEIDENHAIN LS603C Incrementel Linear Encoder (Linear Scale)!!!
*With Distance-Coded Reference marks Signal* In good conditions before remove from CNC Machine
Cleaned and re-connection Test again on Jan.2008
(85% beauty and clean / The both lip seals are original also in good condition) Id.Nr 24992269

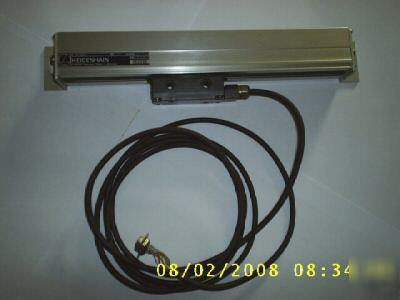

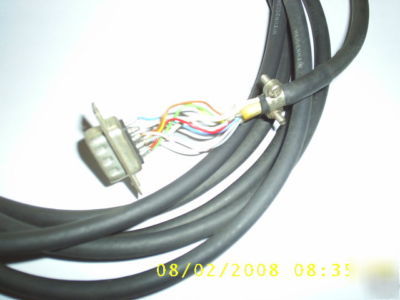

With Original HEIDENHAIN Signal cable ( 8 core+Inner shield+Outer shield) over all lenght 2.90 Meters.
Connected and Power ON Tested with CNC-EDM Machine before remove this unit out and kept it in conditioned stock

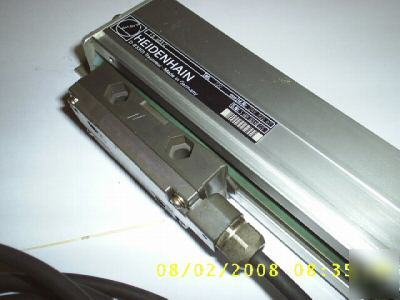

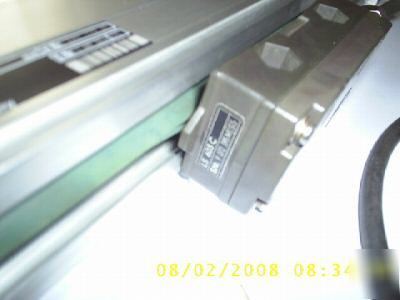

The Reader (Head) and Glasses scale (Ruler) are in original same set, look clear and clean, no repair or parts replacement before.
100% guarantee inside ruler glasses clean & clear with no break
This item Ready to Use after you bought it !
Accept : This Item not include the HEIDENHAIN standard 9 pin-male Circular connector at the end of signal cable.

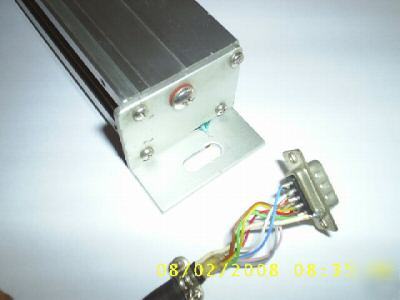

In current, the signal wires soldered on the standard D-type 9 pin-male (Computer port connector DB-9)
If you need the closed original connector for replacement, can find at
General info with HEIDENHAIN products at
Incremental Linear Encoder , Special with Distance-Coded Reference Marks (every 20 mm.)
For measuring steps to 0.5 um. (micron)
Large cross section 40X75 mm. linear scale body (stronger profile)
Signal period (Incremental signals) 20 um.
Maximum traversing speed 60 m/min.
Output signals = 11uApp. Sine wave.
Power supply = 5V. DC. +/- 5% <100 mA.
White/Brown = Internal shield (Signal Ground)
Need to view more pictures or more detail of this item or other similar items?, please send request to me develop1@asianet.co.th
Please understand my little notice follow this-
It meaning you will be transfer your money to my bank account in THAILAND.
This bank branch in BANGKOK the metropolis.
My bank account was continuously used more than 14 years adged.
Our Thailand currency in THAIBAHT (BAHT)
If you not sure about total price or any question please contact me at develop1@asianet.co.th (It's my permanently email and directly to me)
Need my Bank info for money transfer purpose? please send request via email.
