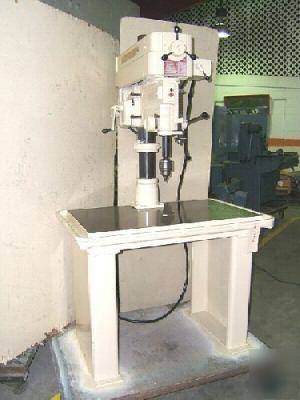

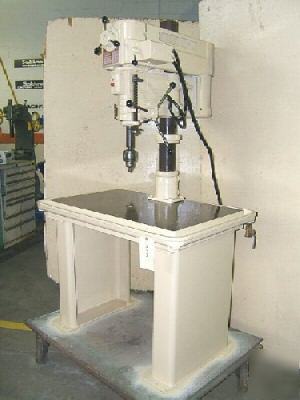

20" powermatic single spindle drill, no. 1200 (20013)


20", POWERMATIC, No. 1200, 3 MT, Vari-Speed 200-2000 RPM, 20" x 40" Tbl., 1.5 HP Our stock number: 20013
MODEL........................................1200
SERIAL NUMBER................................65-984
Spindle......................................No. 3 M.T.
Quill Diameter...............................2-3/4"
Stroke.......................................6"
Column Length................................42"
Column Diameter..............................4"
Spindle Speeds, Variable.....................200 to 2000 RPM
Table Size, Production Type..................24" x 40"
Largest Diameter Hole in Steel...............7/8"
Largest Diameter Hole in Cast Iron...........1-1/8"
Maximum Distance Spindle Nose to Table.......25-1/4"
1-1/2 HP Motor, 1730 RPM 230/460/60/3
Approximate Weight...........................750 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**Skids shown in pictures are not included with the item. **
**All items requiring a skid will have an additional skidding fee added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge.**
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. Our toll-free number in the U.S. (***)-745-6008 or (***)-542-8400 e-mail address is ****@cwwood.com
