> jdsu dsam 2500B series field meter excellent cond.

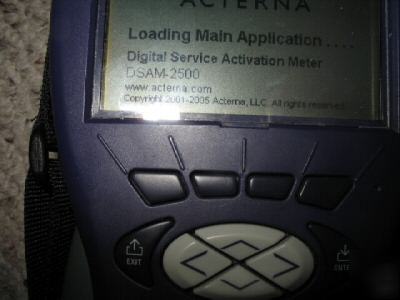

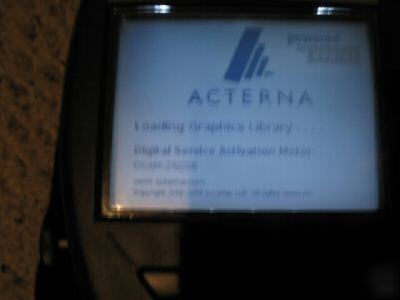

jdsu dsam 2500B series field meter excellent cond.
Handheld Triple Play Field Meter
The DSAM is the industry leading high-speed data installer meter that enables increased numbers of cable modem installs per day.
All-in-one meter includes DOCSIS/EuroDOCSIS service testing and Signal Level Meter (SLM) features.
NEW - Increased throughput on DOCSIS 1.1 hardware – up to 15MB downstream
Autotest capability with administration security.
Environmental resilience and robustness.
Extensive help system directly linked to meter capabilities.
Digital carrier performance with Quick QAM summary of MER/EVM and pre/post FEC BER
. configure automated tests for digital, analog, and DOCSIS channels.
Increase field efficiency with an optional browser interface, over the DOCSIS RF link to your workforce management system using the IAS-100 Instrument
NEW – QAM Ingress (DSAM-2600/3600/6000B – 6MHz units only)
NEW – Sweepless Sweep: Standard on the DSAM-6000; Optional on DSAM-3500/3600
NEW Enhanced Downstream Spectrum (Low Pass Filter, Resolution B/W (30KHz), Dwell time (1-25 ms), 4MHz – 1GHz
NEW – Errored Seconds (ES) and Severely Errored Seconds (SES): DSAM-2500 and Up Only
NEW – HUM for either 60Hz or 50Hz Power Grids
DOCSIS, versions 1.0 and 1.1 based. Optional PacketCable VoIP test capability.
4 to 1000 MHz range; 8 MHz and 6 MHz models. Weather and shock-resistant enclosure.
Weighs less than 3 lb (1.4 kg).
Analog and digital signal level capabilities.

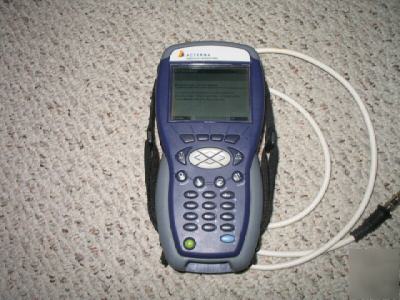

Whats Includes: Pouch Bag , Dsam-2500B Field Meter , Battery , Coaxial Cable
Whats Not included: Car Charger, A/C charger - these things can be ordered by calling JDSU
