Complete access control system w/ proximity reader +++
1 Securakey Proximity Card Reader #RK65K
1 Securakey 9VDC Power Supply #RK600PS
1 Securakey Programming Deck #PD1
50 Securakey Proximity Cards #RKCM-02
Contact Us Regarding ........................
Additional Proximity Card Readers or to modify quantity of cards!
Customize this kit to meet your specific needs!
Below you will see many important product features and applications for this access control device. Please read carefully before purchasing to insure this is the correct item to meet your needs.
* Hundreds sold with 0 returns!!!!!!!
* Installation instructions included.
* This model usually retails for about $360.00.
Stand Alone Proximity Access Control

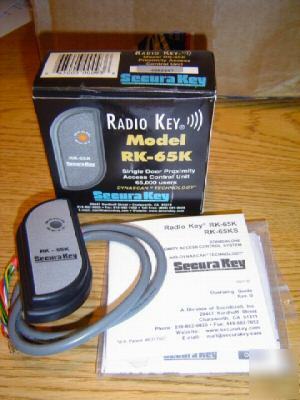

The Radio Key RK-65K, measuring only 1.561 by 3.561. The RK-65K is tiny enough to be installed right on a door frame or mullion, yet it can handle up to 65,000 cardholders.
Every RK-65K has a solid-state relay, a remote-open input, a bi-color LED and a buzzer. The RK-65K also has a Wiegand output, allowing it to be connected to multi-door access control systems by Secura Key and most other manufacturers.
When connected to an access control panel, the on-board relay may be used for degraded-mode operation or to provide additional functionality to selected cards.
For more information, call (***)-437-9757 or visit
* Low Priced, Single-Door Proximity Entry System
* Up to 65,000 Proximity Tags or Cards
* Programmed with an Inexpensive Proximity Card Deck or handheld programmer
* Patented Dynascan® Technology*
* No PCs or External Programmer Needed
Radio Key® RK-65K is fully programmable, stand alone proximity access control unit that can manage up to 65,000 individual users. Patented Dynascan®* technology assures maximum performance in almost any environment!
All dimensions in drawings are indicated in inches
SPST Solid State Relay, 1A max. @60 VAC or DC
Normally open or normally closed (field programmable)
May also be used with SecuRelayâ„¢ smart relay module (sold separately)
Remote Open (requires contact closure);
Bicolor (Red or Green) LED Control or Buzzer/LED control
Any Wiegand Format up to 40 bits
Maximum Cable Distance from panel is 500Ft. - 5 or 6 conductor 20 gauge shielded cable
Access Control Unit and Card/Key Tag
-40° to +70°C (-40° to +158°F)
Molded Card: Up to 6" (15.24 cm); Key Tag & ISO Card: Up to 5" (12.70 cm)
65,000 key tags or cards (26 or 32 bit), 10 Facility Codes
Programmable 0.25 seconds to 18 hours or Toggle Mode
Proximity Programming Deck (INCLUDED)
Handheld Programmer (Additional)
9VDC, 200 mA, plug-in Power Supply, 120 VAC Input. For Access Unit Only (INCLUDED)
[E-MAIL: ****@fastaccesssecurity.com ]
All security and access control equipment should be installed by a qualified installer only. Fast Access Security Corp. assumes no liability if this equipment is installed incorrectly.
