TDS544A 4 ch. 500MHZ 1GS/s digit. oscilloscope (bad)

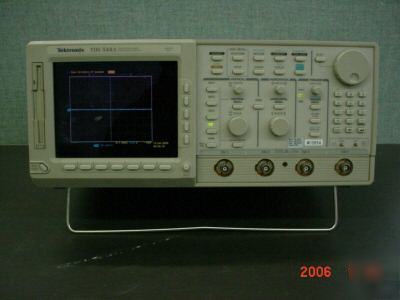

TDS544A 4 Channel 500MHz 1GS/s Digitizing Oscilloscope
This unit pass self test and signal path compensation, but has some noise spike at 50us 20us /div.
The TDS544A Digitizing Oscilloscope has a 500MHz bandwidth and features a color CRT, sample rates to 1 GSa/s, 25 automatic measurements, 4 input channels, a 3.5" floppy drive, sensitivity of 1 mV to 10 V per division, time base range of 500 ps to 10 s/div, waveform Pass/Fail testing, and record lengths of up to 50,000 points.
* Vertical Sensitivity: 1 mV/div to 10 V/div
* Sweep speed: 5 s/div to 500 ps/div
* Interfaces: GPIB, VGA out, RS-232, Centronics
* 1 megohm or 50 ohm input impedance
* 90-250 Vac; 47-63 Hz operation
* Weight: 27 lb; Size: 193 mm (7.6 in)H x 445 mm (17.5 in)W x 432 mm (17.0 in)D
This item also includes a CD copy of Manual and Power Cord, no probe
