Mastech variable regulated dc power supply 0-30V 0-20A
MASTECH VARIABLE REGULATED DC POWER SUPPLY 0-30V 0-20A

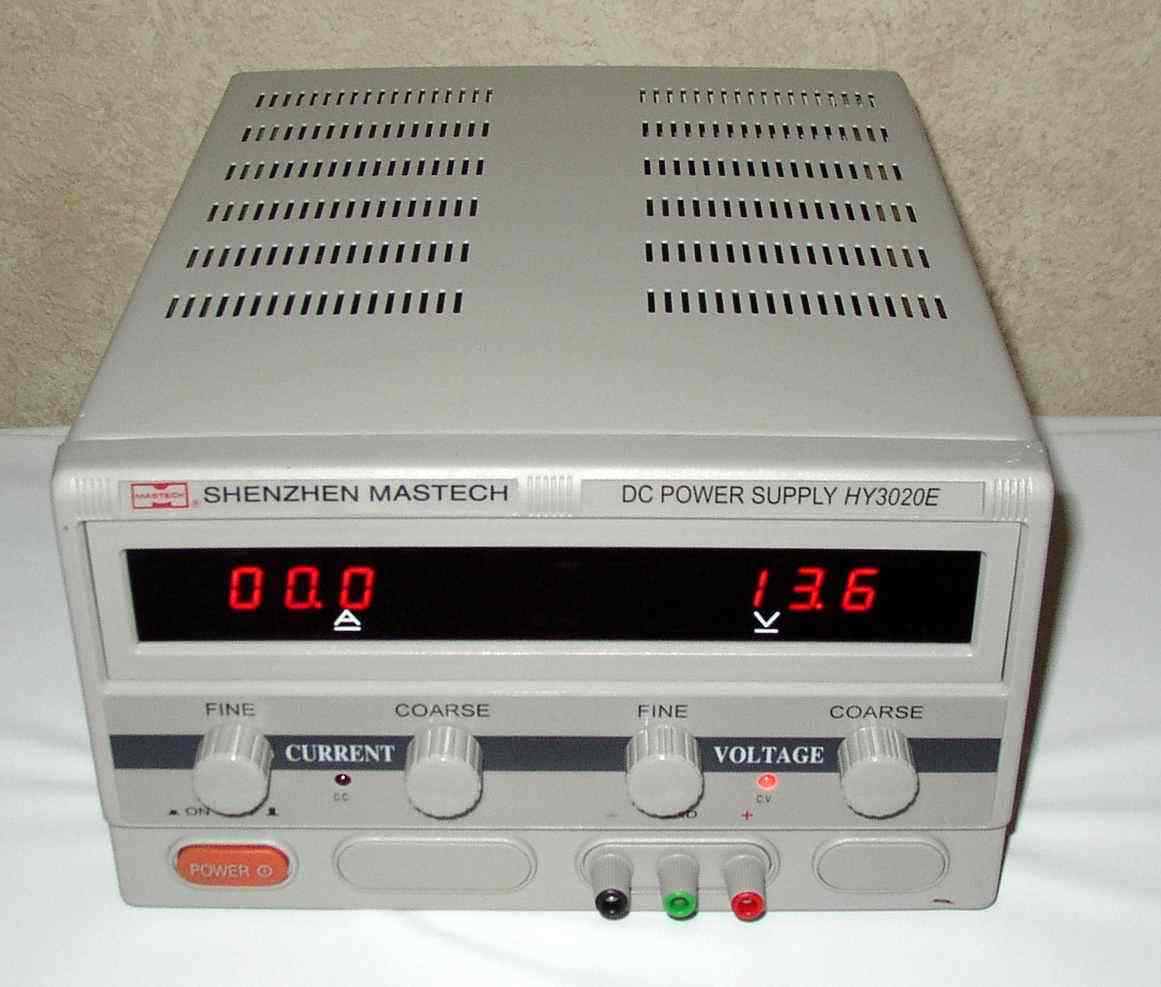

For sale is a brand new lab grade regulated DC power supply from Mastech, Model number HY3020E. HY3020E is one of the most stable and powerful DC power supply from Mastech. This high quality power supply has two levels of control over both current and voltage outputs (coarse and fine), which can be continously adjustable at 0-30V DC and 0-20A. The unit comes with 2 bright LED displays, providing accurate and clearly visible readout for the voltage and current value, both in well-lit and dark environment. LED displays are much brighter nowadays, more durable than LCD displays; for this reason they are the new trend in the instrument panels. This unit has toggle switch at the back that allows you to operate it in 110V AC or 220V AC. Retails well over $400. Please email us with any questions, our hard-working staff will answer every email in no time!
Two level of control for both current and voltage outputs: coarse and fine for ease of use
* Outputs: 0-30 V and 0-20 A
* Input voltage: 110V AC and 220V AC switchable
* Line regulation: CV <= 0.02% + 3 mV, CC <= 0.5% + 3 mA
* Load Regulation: CV <= 0.02% + 10mV, CC <= 0.5% + 10 mA
* Ripple noise: CV <= 10 mV RMS, CC <= 10 mA RMS
* Protection: constant current and short-circuit protection
* LED reading accuracy: +/-1% for voltage and +/-2% for current
* Environment: 0-40C, relative humidity < 90%
