> K&e 71-1014 jig transit with level and micrometer
K&e 71-1014 jig transit with level and micrometer

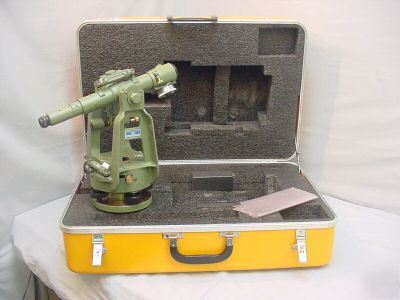

Comes with Protective Fitted case shown. Unit is in EXCELLENT condition.
1 – 71-3250 Coincidence Level – Serial #: 66796
1 – 71-1111 Optical Micrometer – Serial #: 410839
1 – 71-1014 Jig Transit – Serial #: 66796
SOLD WITH A 7 DAY RIGHT OF INSPECTION!
In 1997, Brunson acquired Cubic Precision who had purchased Keuffel & Esser. Brunson replaced their entire alignment
telescope line with Cubic Precision's products, and exclusively adopted their scale-making process.
Establishes precise vertical planes and plumb lines. When equipped with a right-angle eyepiece, zenith sights or upward
plumb lines can be established. Two-speed tangent screws on both the azimuth and elevation axles ease leveling and auto-
collimation. The instrument comes equipped with a standard Level Vial 71 3250 attached to the telescope and a circular vial
on the plate. The eyepiece is easily converted in the field for auto-collimation. An all-purpose glass reticule with cross-pattern
of single lines top and right, paired lines bottom and left is employed.
71-1111 - The micrometer measures horizontal or vertical displacement from a line of sight. Its range is +/- 0.100 inch. Has
uniformly graduated, red and black main scale reading directly to 0.001 inch. Vernier scale reads to 0.0001 inch. Has dustproof
cover glass and split clamp for mounting.
71-3250 - This level can be used for either the plate level or the telescope level on jig transits. It can also be attached to any fixture,
gauge, or machine bracket. Two 7/32 in. diameter holes, spaced 3 1/2 in. on centers, are provided for mounting. The level vial has
a sensitivity of 20 seconds of arc per 2 mm movement.
· Magnification: Varies automatically from 20x at 8 in. to 30x at infinity.
· Focusing Range: 8 in. to infinity.
· Resolving Power: 4 seconds of arc (according to Bureau of Standards test procedure).
· Field of View: 55 minutes at infinity, 6.4 mm at near distance.
· Optics: Fully coated optics used throughout.
· Eyepiece: Erecting, achromatic.
· Telescope Axis: Bronze, with steel journals sweated on.
· Standards: Reinforced, ribbed, U-type bronze one-piece casting. Bearings V-type, bronze,
adjustable for centering line of sight on the azimuth axis in the horizontal and vertical planes.
· Center: Cylindrical, with high precision thrust ball bearing. Mounted in retaining ring between
two precision optically flat steel plates. Enclosed with protective dust cover ring.
· Levels: Telescope - Sensitivity of 20 seconds of arc per 2 mm movement. Plate - Circular,
sensitivity 5 minutes per 2 mm movement.
· Screws: Leveling - Four, with precision generated threads. Tangent - Two-speed, fine motion.
· Tripod Plate: Threaded, 3 1/2 x 8, U.S. Standard.
· Carrying Case: High impact plastic with foam rubber inserts and four large rubber supports
