Hp 16500C logic analyser system with 16534A and 16550A

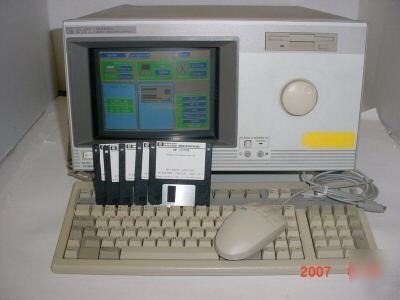

HP 16500C Logic Analyser System Mainframe with 16534A and 16550A
The 16500C Logic Analyzer Mainframe can be configured for a wide range of measurement tasks, including microprocessor debug with source-code referencing, timing verification and debug, software performance analysis, and characterization. Together with the 16501A Expander Frame (not included), it houses up to 10 type 16500 series measurement modules (not included). The unit has a color touchscreen, and is designed for use with a keyboard or mouse driven user interface. Menus can be remotely viewed and controlled from a PC or workstation.
* Hard Disk Drive - MS-DOS® compatible formatted disk drive IDE interface bus
Capacity - 1.44 MB formatted Media - 3.5 inch floppy Formats - MS-DOS or LIF
* Protocols Supported - TCP/IP, NFS, FTP, SNMP
* Program Interface - Instrument settings and operating modes may be remotely programmed through data files transmitted via NFS protocol.
* One 16534A 2 GSa/s 2-Channel 500 MHz BW Digitizing Oscilloscope Module
* One 16550A 102 Channel State Timing Module w/4K of acquisition memory
* Composite System Disk (4) and Composite PV Test Disk (1)
* Power Core, key Board and Mouse
