Altera usb fpga/cpld downloader usb blaster compatible

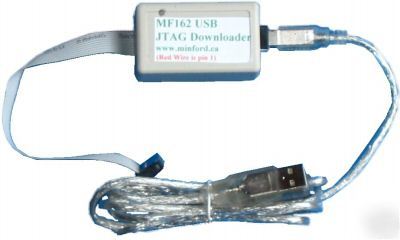

Minford MF162 USB JTAG Downloader For Altera Device
Fully compatible with Altera USB Blaster
Minford MF162 USB JTAG Downloader is fully compatible with Altera USB Blaster.
It supports all FPGA, CPLD and Serial Configuration Devices from Altera.
Program or configure Altera devices from 1.8V, 2.5V, 3.3V to 5V.
* Reliable and cost effective download adapter for Altera FPGA and CPLD development.
* Supports Active Serial(AS), JTAG and Passive Serial(PS) mode.
* Allow users to perform the following functions:
Program CPLD, Serial Configuration Device and Configuration Device for Altera device
Configure FPGA for Altera devices
* Provides a reliable, fast and low-cost method for in-system programming.
* Supports Cyclone, Cyclone II, Stratix, APEX II and APEX 20K, FLEX, MAX II, MAX7000S, MAX7000A, MAX7000B,
MAX9000, MAX9000A, MAX3000A Serials FPGA or CPLD.
* Supports EPCSX, EPCX Series Configuration Devices.
* Supports Quartus II software Version 4.0 or later.
* Supports Quartus II SignalTap® II Logic Analyzer (for logic analysis)
* High Programming Speed with USB interface to Host PC.
* Uses a 10-pin circuit board connector, which is identical to the Altera USB Blaster download cable.
* FPGA: Cyclone, Stratix, APEX II and APEX 20K, ACEX 1K devices, Mercury devices and FLEX.
* CPLD: MAX II, MAX7000S, MAX7000A, MAX7000B, MAX9000, MAX9000A, MAX3000A Serials CPLD.
* Configuration devices: EPCS1, EPCS4, EPCS16, EPC1, EPC4 Series Configuration Devices.
Package includes the following item:
1. MF162 USB JTAG Downloader for Altera Devices.
2. 4 feet high speed USB cable
3. 10 inch flat cable to connect the target (attached with the downloader)
4. User guide sent by email.
For more information, please find it at http://www.minford.ca/.
Delivery Time: US and Canada : 3 - 5 days; Europe: 4 - 8 days; All other countries: 5 - 10 days
Money back guarantee!Minford promises that all products may be returned or exchanged within 7 days from the date merchandise is received.
Please contact us at techsupport@minford.ca for RMA.
If you have any question about this product, please contact us (info@minford.ca),
we provide detail technical support about our products.
