S3CEV40 evaluation board for samsung S3C44B0X


S3CEV40 Evaluation Board for Samsung S3C44B0X S3CEV40 Evaluation Board for Samsung S3C44B0X
-10 BaseT, USB, 2x RS232, LCD, Boot Code, ucLinux ...

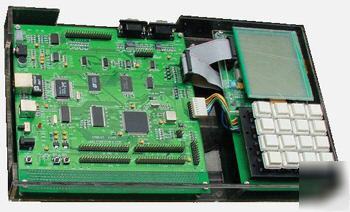

S3CEV40 EVB for S3C44B0X is a platform that is suitable for code development of Samsung's S3C44B0X 16/32-bit RISC microcontroller (General ARM) for hand-held device and general applications.
S3C44B0X consists of 16-/32-bit RISC (ARM7TDMI) CPU core, 8KB cache, optional internal SRAM, LCD controller (up to 256 color DSTN), 2-ch UART with hand-shake (IRDA1.0,16-byte FIFO), 4-ch DMA, System manager (chip select logic, FP/ EDO/SDRAM controller), 6-ch timers with PWM, 71-bit general purpose I/O ports, RTC, 8-ch 10-bit ADC, IIC-BUS interface, IIS-BUS interface, Sync. SIO interface and PLL for clock.
S3CEV40 EVB consist of S3C44B0X, boot Flash, SDRAM, LCD&TSP touch screen interface, two serial communication ports, ethernet interface, USB interface, keyboard interface, IIS(sound) interface, exterior IDE port, Nand Flash, RTC, JTAG interface and 8-SEG. S3CEV40 EVB provide a high performance and low cost solution for embedded engineers.
Ø Dimensions: 190 x 190 mm(main board)
Ø 10M Ethernet interface connector
Ø IIS audio frequency export (speaker out)
Ø 2 interrupt buttons and 2 LEDS
Ø 20-pin JTAG interface connector
Ø Samples codes and test software(All in source code)
- learning example for arm assemble instructions
- learning example for running arm processor in different operating mode
- learning example for arm thumb instructions
- learning example on how to operate with interrupt
- Test porgram for 8_segment Led, to light as 1,2,3,...
- Test program on how to access memory
- Test program to lighting LED, showing how to use GPIO
- Test Program for reading/writing flash chip
- Test program for keyboard operation
- Test program for LCD display, both showing text and graphics
- Test porgram on how to use touch screen
- A network application to test Ethernet port
Ø uCos BSP (uC/OS-II needs to be licensed if used commercially, please contact Micrium)
Ø uClinux source tree(porting for this board)
Ø 1X DB9 plug-to-DB9 socket straight-through serial cable
- samples code and test software
- uCos BSP (uC/OS-II needs to be licensed if used commercially, please contact Micrium)
The evaluation board is capable of supporting different kinds of debugging systems, using an ICE interface.
