ATRC400KEV2,atrc-400KL rf modem module evaluation board
ATRC400KEV2,ATRC-400KL RF MODEM MODULE EVALUATION BOARD
ATRC400KEV2 is a evaluation Board set for ATRC-400KL Series RF MODEM MODULE.
You can verify our RF MODEM MODULE ATRC-424KL and ATRC-447KL with this evaluation board.
* Control MCU : ATMEGA8L-8AI
* Input voltage : 7.5V ~12V dc
* Evaluation board for ATRC-424KL & ATRC-447KL RF MODEM MODULE
* ATMEL ATMEGA8L is used for basic test function of ATRC-424KL or ATRC-447KL.
* ATMEL ATMEGA8L is preprogrammed for testing RF MODEM MODULE.
* You can check normal oeration of RF MODEM MODULE
* 4 Keypads and a reset switch
* Test by using the keypad
* PC to PC communication test with evaluation board.
* BER(Bit Error Rate)/RSSI(Received Signal Strength Indicator) TEST
* Measuring temperature and compensation test.

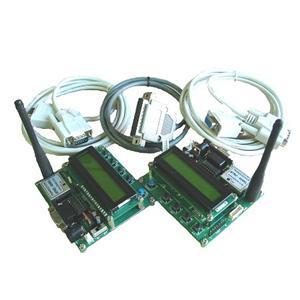

* - ATRC400KEV Board(Evaluation Board) - 2 pcs
* - 16X2 Backlight Character LCD - 2 pcs
* - ATRC-400KL RF MODEM MODULE -2 pcs
* - ANT-435H-MSMA antenna - 2 pcs
* - Serial Cable - 2 pcs
* - AVR-ISP Cable(for ATMEL ATMEGA8L) - 1pcs
* If you want express mail, contact me please.
* Air mail will take 7~ 15days.
If you are not satisfied with your item, you may return it unused and in its original condition for a refund.
* Refund(If accepted) must be requested 7 days upon receipt of goods
* Exchange only if the item is not working properly
