Grind cube machinist/toolmaker, hardened, #10X32- 22

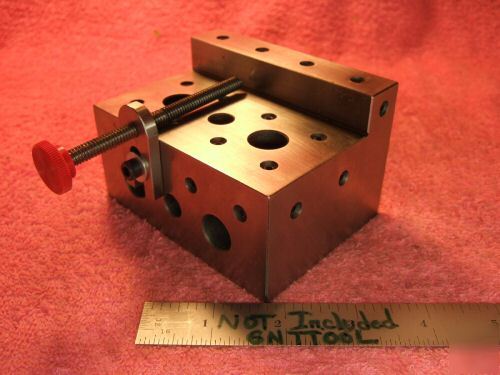

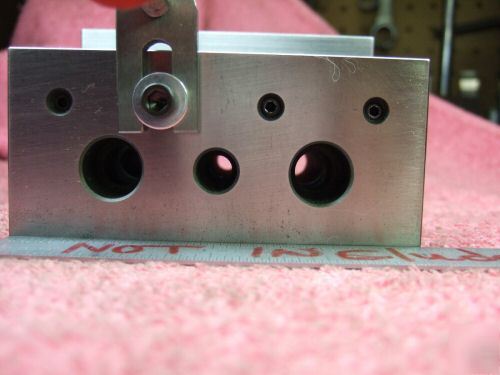

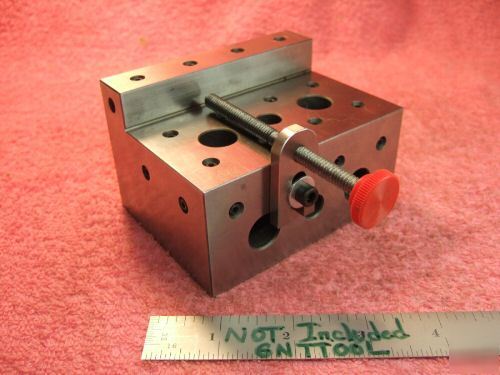

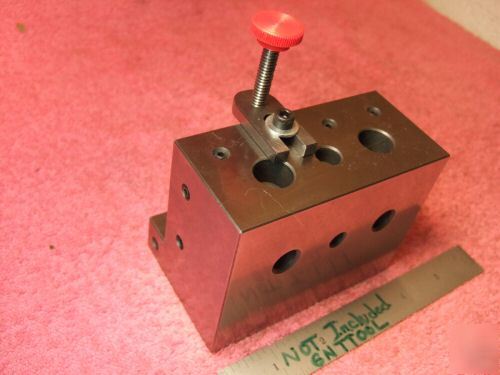

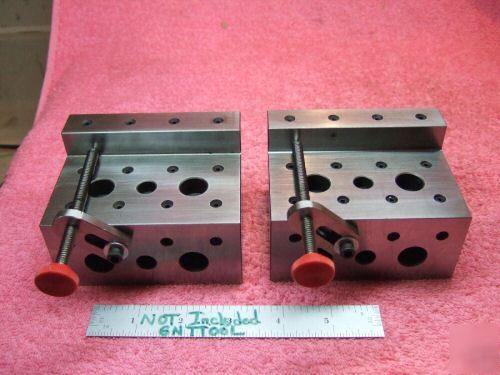

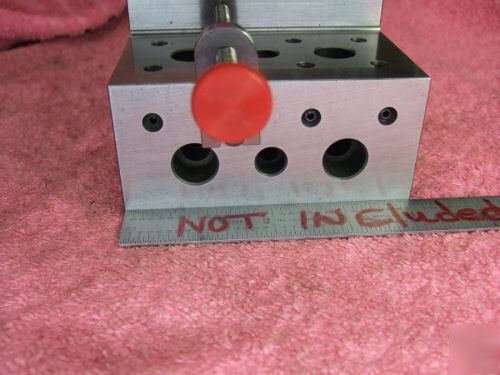

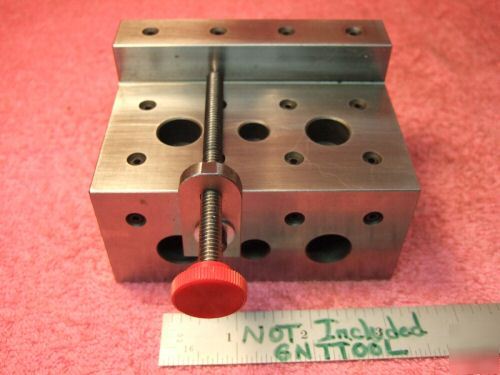

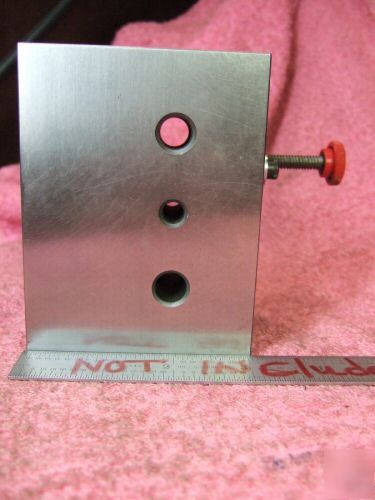

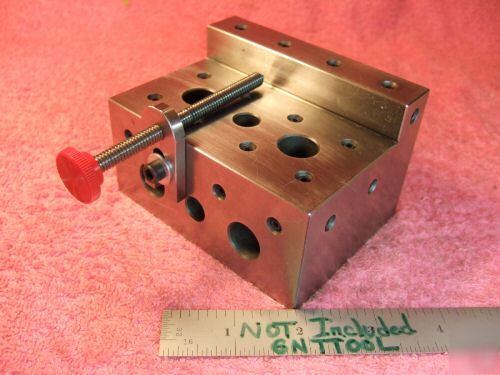

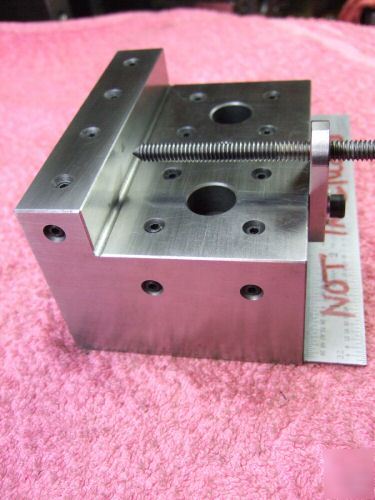

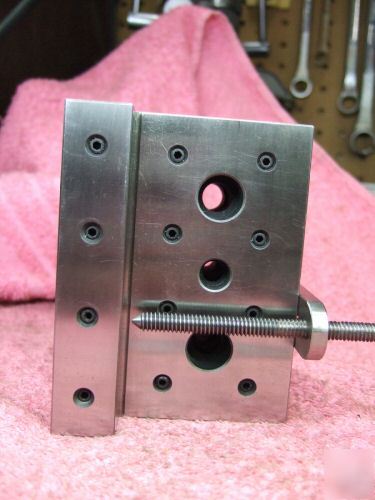

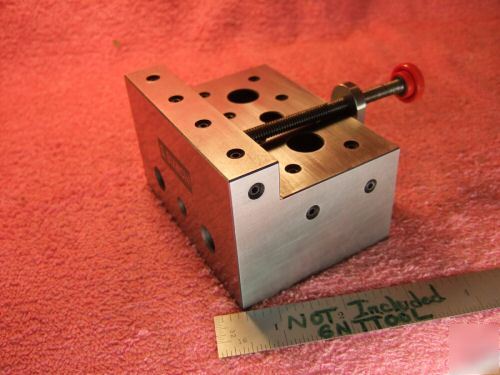

BLOCKS MEASURE 3.03" WIDE WITH LENGTH OF 4.023" AND 2.497" AND FLAT AREA IN FRONT OF CLAMP AND RAIL IS 2.25" WIDE X 4.02" LONG WITH RAIL AT BACK THAT IS .73" TALL. EACH BLOCK HAS (22) TAPPED HOLES #10 X 32 AND (6) CLEARANCE AND COUNTER-BORED HOLE THROUGH THE WIDTH AND THICKNESS AS SHOWN FOR 1/4" AND 3/8" SOCKET HEAD CAPSCREWS AS SHOWN. BLOCKS WERE STORED IN A GERSTNER BOX AND BASE SOON TO BE LISTED. SEE PICS. NR
U. S. A. THE BEST IS HERE! SEE PICS.
