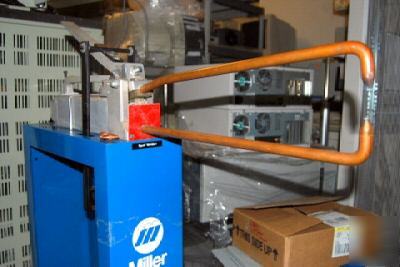

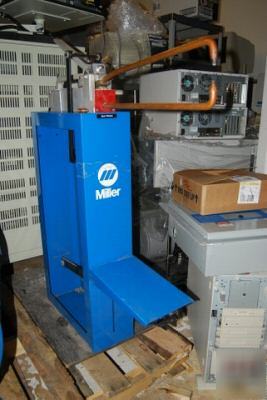

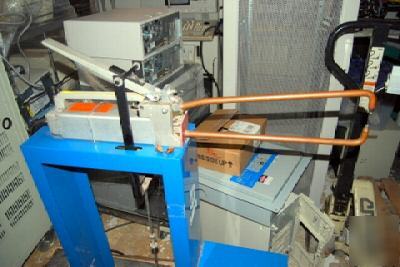

Miller jet lmsw-52 spot welder & footswitch/work stand
Item in excellent used condition

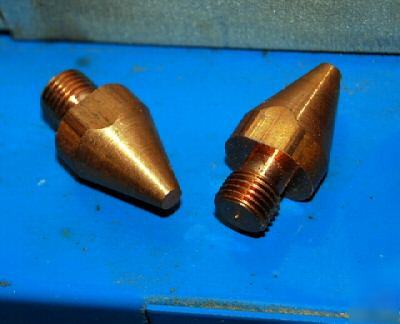

Also, new spare tips included!
Removed from working environment
Below is info/specs courtesy of comp. site
Miller Electric Mfg Co 900377 - MSW & LMSW Spot Welders, Air Cooled The MSW and LMSW Series are lightweight, air-cooled units that are portable, easy to operate, and provide a quick and effective means for spot welding mild, galvanized or stainless materials. MSW models weld up to 1/8 in (3.2 mm) total material thickness or two pieces of 20 gauge (1.8 mm) galvanized metal. LMSW Models weld up to 3/16 in (4.8 mm) total material thickness or two pieces of 16 gauge (3 mm) galvanized metal. "T" models include a timer panel with a 0 to 5 second weld timer and power on/off switch, and come with a 10ft. (3m) input power cord and 10ft. (3m)interconnecting cord. The timer panel can be mounted on the optional SWP-2 pedestal, or any other convenient location. Hand lever locks tongs firmly on material, ensuring positive, accurate fit-up. Accommodates a wide variety of tongs and tips. Quick and easy adjustment for material thickness. Reversible for left- or right-hand operation.
Note: Tongs and tips must be ordered separately. One standard set of tips is supplied with each set of tongs.
* Resistance Spot Welding (RSW)
* MSW : 1.5 kVA at 50 % Duty Cycle
* LMSW : 2.5 kVA at 50 % Duty Cycle
* Output Power Range (calibrated with standard-type tongs):
* MSW: 6 in (152 mm) 5,550 A
* MSW: 12 in (305 mm) 4,500 A
* MSW: 18 in (457 mm) 3,600 A
* LMSW: 6 in (152 mm) 6,750 A
* LMSW: 12 in (305mm) 5,800 A
* LMSW: 18 in (457mm) 4,850 A
* Work Capacity (combined thickness uncoated mild steel using 6 in [152 mm] tongs):
* LMSW: 3/16 in (4.7 mm)
