18" engine lathe, sharp 1860LV 3" hole, varia


Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy
* Manual Lathes, Mills, Drills, Saws
* Grinders, Hones, Finishing
* Ovens, Furnaces & Environmental

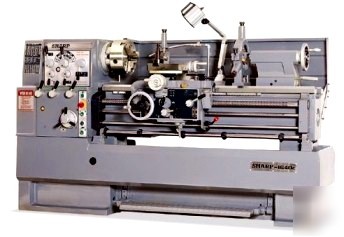

18" ENGINE LATHE, Sharp 1860LV 3" Hole, Varia
18" ENGINE LATHE, Sharp 1860LV 3" Hole, Varia
MODEL: 1860LV w/Digital Variable Speed
Swing over gap, width: 26-1/2", 10-3/4"
Spindle nose type: D1-8 Camlock
Spindle Speeds (Inf. Variable): 20 - 2,000 RPM
Longitudinal feeds - in/rev (18): 0.002 - .032"
Crossfeed - in/rev (12):0.001 - 0094"
Metric & module threads (17): 0.5 - 7mm
Leadscrew pitch, diameter: 4 TPI, 1-3/8"
Quill travel (graduated): 5-1/2"
7.5 HP Spindle motor (220V, 60 Cycle, 3 Phase)
Requires a transformer for 440 volt operation
Net weight (approximately): 4,500 lbs
10" 3-jaw chuck, coolant system, american toolpost, halogen work
light, 16" face plate, steady rest (6"), longitudinal carriage stops,
tool kit, splash guard, & follow rest.
OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readouts, tracer, taper attachment, micrometer
carriage stop, quick-change tool holder, & 5C collet closer.
Machine Location: HARRISON, NJ
