New parker igr hydraulic motor 110A-106-bs-1 177-95

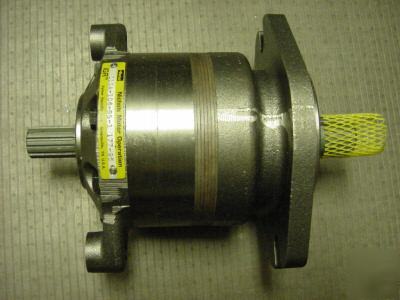

You are purchasing a Parker Nichols Motor Operation Hydraulic Motor
10.6 in3/rev, 519 Rev/Min Max, 20 GPM Max Cont., 25 GPM Max Intermittent, 2250 PSI Max. Cont. Differential Pressure, 3000 PSI Max. Intermittent Differential Pressure, 3250 PSI Max. Supply Pressure, 3115 in-lbs Max Torque Cont., 4121 in-lbs Max Torque Intermittent, 17.6 HP
SAE B 2-Bolt, 7/8-14 SAE Ports, 1” Keyed Shaft flange End, 13 tooth Spline opposite end as shown. (With 2 shafts this was probably a special. You can always guard the spline end and use it as a standard motor with a 1” Keyed shaft if you want.
Go to: http:// /pumpmotor/cat/english/1590-019.pdf for more information.



New parker igr hydraulic motor 110A-106-bs-1 177-95
